STG5683QTR

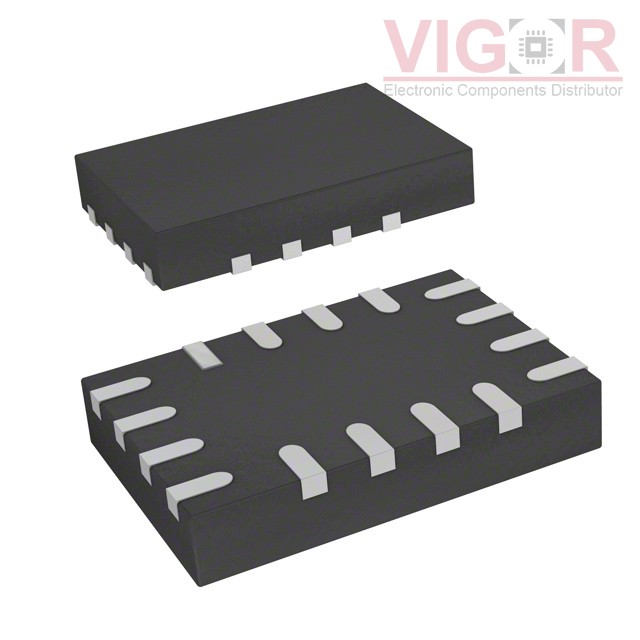

Image is for reference,
please contact us to get the real picture

Part No :: STG5683QTR

Manufacturer: STMicroelectronics

Description: IC SWITCH DUAL SPDT 16QFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: STG5683QTR PDF

Availability: 4019 pieces

Unit Price: ~~$2.63000~~

Current price of STG5683QTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STG5683QTR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	550mOhm
Channel-to-Channel Matching (ΔRon):	15mOhm
Voltage - Supply, Single (V+):	1.65V ~ 4.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	80ns, 50ns
-3db Bandwidth:	33MHz
Charge Injection:	46pC
Channel Capacitance (CS(off), CD(off)):	6pF
Current - Leakage (IS(off)) (Max):	-
Crosstalk:	-60dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-UFQFN
Supplier Device Package:	16-QFN (2.6x1.8)

Please confirm the specifications of the products when ordering.
