SN74LVC1G3157DCK3

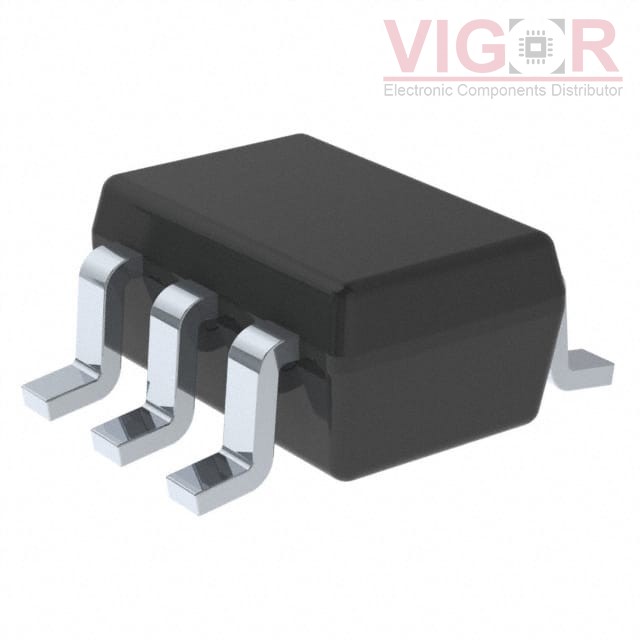

Image is for reference,
please contact us to get the real picture

Part No :: SN74LVC1G3157DCK3

Manufacturer: Texas Instruments

Description: LOGIC GATE

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: SN74LVC1G3157DCK3 PDF

Availability: 4868 pieces

Unit Price: ~~$0.38000~~

Current price of SN74LVC1G3157DCK3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SN74LVC1G3157DCK3 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	1
On-State Resistance (Max):	15Ohm
Channel-to-Channel Matching (ΔRon):	200mOhm
Voltage - Supply, Single (V+):	1.65V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	6ns, 4ns
-3db Bandwidth:	340MHz
Charge Injection:	7pC
Channel Capacitance (CS(off), CD(off)):	5.2pF
Current - Leakage (IS(off)) (Max):	1µA
Crosstalk:	-54dB @ 10MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	6-TSSOP, SC-88, SOT-363
Supplier Device Package:	SC-70-6

Please confirm the specifications of the products when ordering.
