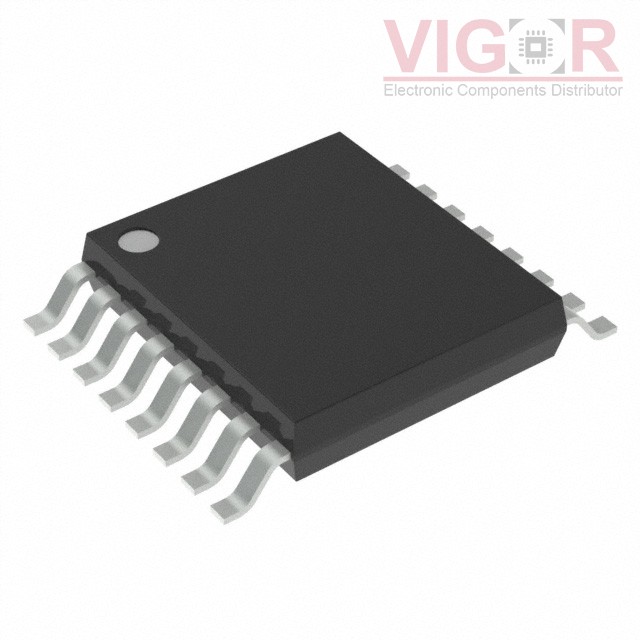

TMUX1209PWR

Image is for reference,
please contact us to get the real picture

Part No :

TMUX1209PWR

Manufacturer
Texas Instruments
Description
IC SWITCH DUAL 16TSSOP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
TMUX1209PWR PDF
Availability
1247 pieces
Unit Price
$0.56000

Current price of TMUX1209PWR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Circuit:-
Multiplexer/Demultiplexer Circuit:4:1
Number of Circuits:2
On-State Resistance (Max):5Ohm (Typ)
Channel-to-Channel Matching (ΔRon):150mOhm
Voltage - Supply, Single (V+):-
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):14ns, 5ns (Typ)
-3db Bandwidth:125MHz
Charge Injection:9pC
Channel Capacitance (CS(off), CD(off)):13pF, 38pF
Current - Leakage (IS(off)) (Max):75nA (Typ)
Crosstalk:-62dB ~ -42dB @ 1MHz ~ 10MHz
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:16-TSSOP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
HOT ADG1221BRMZ

ADG1221BRMZ

IC SWITCH DUAL SPST 10MSOP

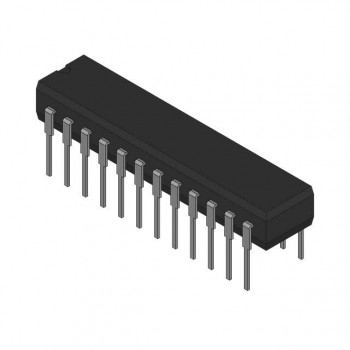

HOT CD4067BF3A
