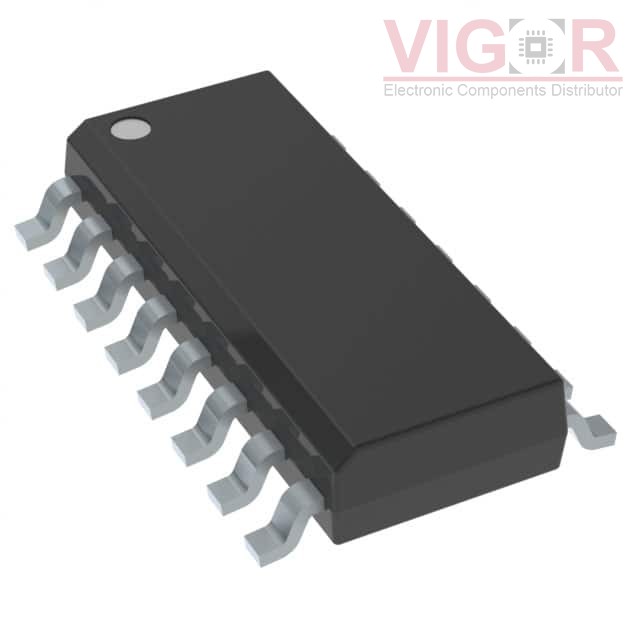

SN74LV4052ANSR

SN74LV4052ANSR

Image is for reference,
please contact us to get the real picture

Part No :

SN74LV4052ANSR

Manufacturer
Texas Instruments
Description
IC MULTIPLEXER DUAL 4X1 16SO
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
SN74LV4052ANSR PDF
Availability
1206 pieces
Unit Price
$0.66000

Current price of SN74LV4052ANSR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SN74LV4052ANSR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Circuit:SP4T
Multiplexer/Demultiplexer Circuit:4:1
Number of Circuits:2
On-State Resistance (Max):75Ohm
Channel-to-Channel Matching (ΔRon):700mOhm
Voltage - Supply, Single (V+):2V ~ 5.5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):14ns, 14ns
-3db Bandwidth:50MHz
Charge Injection:-
Channel Capacitance (CS(off), CD(off)):0.5pF, 13.1pF
Current - Leakage (IS(off)) (Max):100nA
Crosstalk:-45dB @ 1MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.209", 5.30mm Width)
Supplier Device Package:16-SO
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 74LVC1G3157GM,132

74LVC1G3157GM,132

NOW NEXPERIA 74LVC1G3157GM - SIN
HOT MAX4051EEE+T

MAX4051EEE+T

IC MULTIPLEXER 8X1 16QSOP

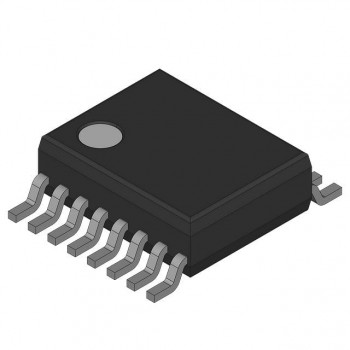

HOT MAX4052CEE
