FSA2259UMX

FSA2259UMX

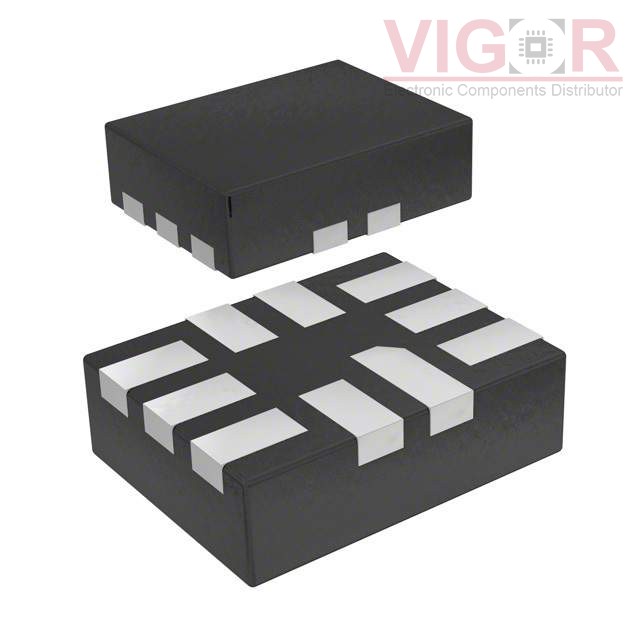

Image is for reference,
please contact us to get the real picture

Part No :

FSA2259UMX

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC SWITCH DUAL SPDT 10UMLP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
FSA2259UMX PDF
Availability
315 pieces
Unit Price
$0.50000

Current price of FSA2259UMX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FSA2259UMX Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:2
On-State Resistance (Max):500mOhm (Typ)
Channel-to-Channel Matching (ΔRon):80mOhm
Voltage - Supply, Single (V+):1.65V ~ 4.4V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):55ns, 30ns
-3db Bandwidth:50MHz
Charge Injection:25pC
Channel Capacitance (CS(off), CD(off)):30pF
Current - Leakage (IS(off)) (Max):10nA
Crosstalk:-100dB @ 100kHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:10-UFQFN
Supplier Device Package:10-UMLP (1.8x1.4)
