DG535DJ

DG535DJ

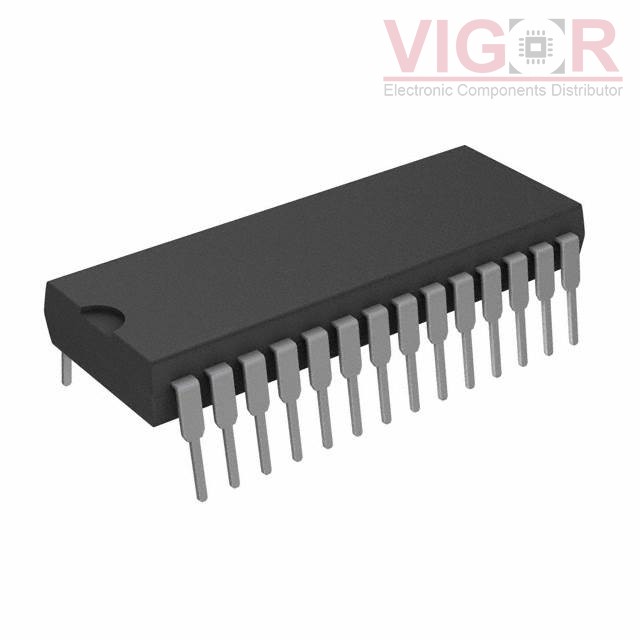

Image is for reference,
please contact us to get the real picture

Part No :

DG535DJ

Manufacturer
Vishay / Siliconix
Description
IC AMP/VIDEO/MUX LP 2CH 28DIP
Catalog
Interface - Analog Switches - Special Purpose
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
DG535DJ PDF
Availability
881 pieces
Unit Price
$0.00000

Current price of DG535DJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DG535DJ Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Applications:Video
Multiplexer/Demultiplexer Circuit:16:1
Switch Circuit:-
Number of Channels:1
On-State Resistance (Max):90Ohm
Voltage - Supply, Single (V+):10V ~ 16.5V
Voltage - Supply, Dual (V±):-
-3db Bandwidth:500MHz
Features:T-Switch Configuration
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Through Hole
Package / Case:28-DIP (0.600", 15.24mm)
Supplier Device Package:28-PDIP
