DG540DN

DG540DN

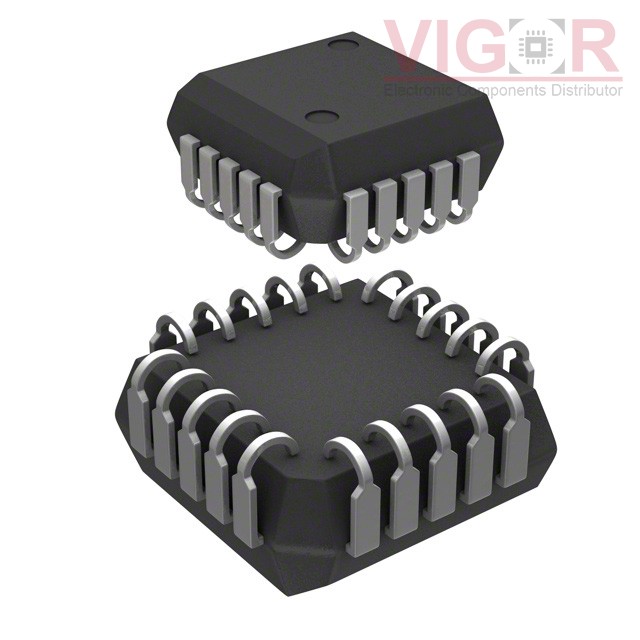

Image is for reference,
please contact us to get the real picture

Part No :

DG540DN

Manufacturer
Vishay / Siliconix
Description
IC SWITCH QUAD SPST 20PLCC
Catalog
Interface - Analog Switches - Special Purpose
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
DG540DN PDF
Availability
212 pieces
Unit Price
$0.00000

Current price of DG540DN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DG540DN Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Applications:Video
Multiplexer/Demultiplexer Circuit:1:1
Switch Circuit:SPST
Number of Channels:4
On-State Resistance (Max):60Ohm
Voltage - Supply, Single (V+):3V ~ 15V
Voltage - Supply, Dual (V±):±3V ~ 15V
-3db Bandwidth:500MHz
Features:RGB, T-Switch Configuration
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:20-LCC (J-Lead)
Supplier Device Package:20-PLCC (9x9)
