74LVC1284DB,112

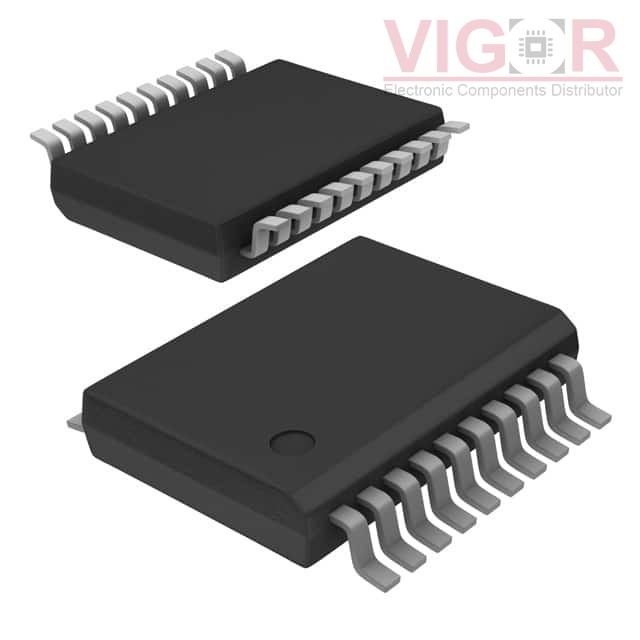

Image is for reference,
please contact us to get the real picture

Part No :: 74LVC1284DB,112

Manufacturer: NXP Semiconductors

Description: IC TRANSCEIVER FULL 4/4 20SSOP

Catalog: Interface - Drivers, Receivers, Transceivers

Shipped from: HK warehouse

Expected Shipping Date: Aug 07 - Aug 11 2025

DataSheet: 74LVC1284DB,112 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of 74LVC1284DB,112 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

74LVC1284DB,112 Specifications

Type	Description
Series:	74LVC
Package:	Tube
Part Status:	Obsolete
Type:	Transceiver
Protocol:	IEEE 1284
Number of Drivers/Receivers:	4/4
Duplex:	Full
Receiver Hysteresis:	400 mV
Data Rate:	-
Voltage - Supply:	3V ~ 3.6V
Operating Temperature:	0°C ~ 70°C
Mounting Type:	Surface Mount
Package / Case:	20-SSOP (0.209", 5.30mm Width)
Supplier Device Package:	20-SSOP

Please confirm the specifications of the products when ordering.
