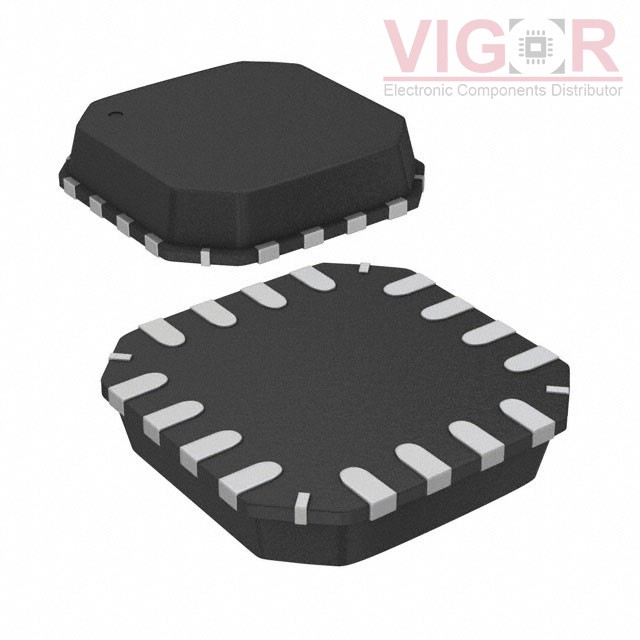

AD8224HBCPZ-WP

AD8224HBCPZ-WP

Image is for reference,
please contact us to get the real picture

Part No :

AD8224HBCPZ-WP

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC INST AMP 2 CIRCUIT 16LFCSP
Catalog
Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
AD8224HBCPZ-WP PDF
Availability
372 pieces
Unit Price
$15.94000

Current price of AD8224HBCPZ-WP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AD8224HBCPZ-WP Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Amplifier Type:Instrumentation
Number of Circuits:2
Output Type:Rail-to-Rail
Slew Rate:2V/µs
Gain Bandwidth Product:-
-3db Bandwidth:1.5 MHz
Current - Input Bias:10 pA
Voltage - Input Offset:175 µV
Current - Supply:750µA (x2 Channels)
Current - Output / Channel:15 mA
Voltage - Supply, Single/Dual (±):4.5V ~ 36V, ±2.25V ~ 18V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-VQFN, CSP
Supplier Device Package:16-LFCSP-VQ (4x4)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CLC401AJ

CLC401AJ

OPERATIONAL AMPLIFIER
HOT TLV2784IDR

TLV2784IDR

TLV2784 QUAD 1.8V RRIO, 8MHZ AMP

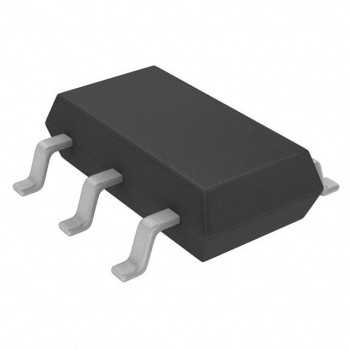

HOT LTC6228HS6#TRPBF
