SN74LS73AN

SN74LS73AN

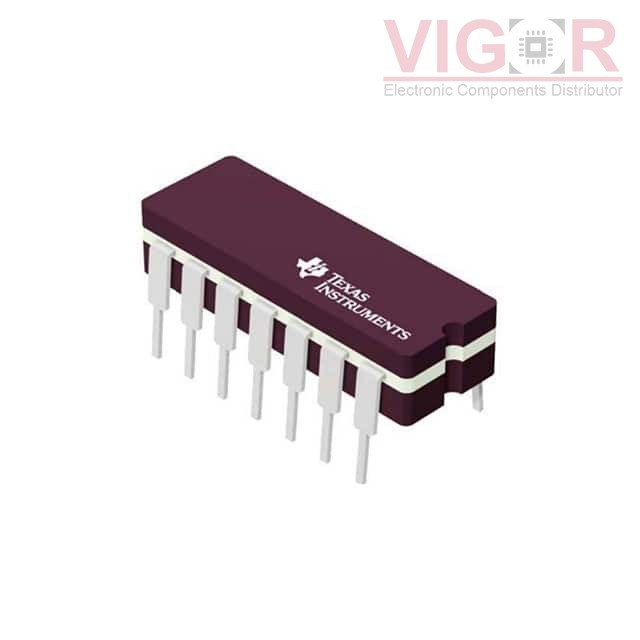

Image is for reference,
please contact us to get the real picture

Part No :

SN74LS73AN

Manufacturer
Texas Instruments
Description
IC FF JK TYPE DUAL 1BIT 14DIP
Catalog
Logic - Flip Flops
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
SN74LS73AN PDF
Availability
14841 pieces
Unit Price
$2.14000

Current price of SN74LS73AN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SN74LS73AN Specifications
Type Description
Series:74LS
Package:Tube
Part Status:Active
Function:Master Reset
Type:JK Type
Output Type:Complimentary
Number of Elements:2
Number of Bits per Element:1
Clock Frequency:45 MHz
Max Propagation Delay @ V, Max CL:20ns @ 5V, 45pF
Trigger Type:Negative Edge
Current - Output High, Low:400µA, 8mA
Voltage - Supply:4.75V ~ 5.25V
Current - Quiescent (Iq):6 mA
Input Capacitance:-
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Through Hole
Supplier Device Package:14-PDIP
Package / Case:14-DIP (0.300", 7.62mm)
