SN74AC74NG4

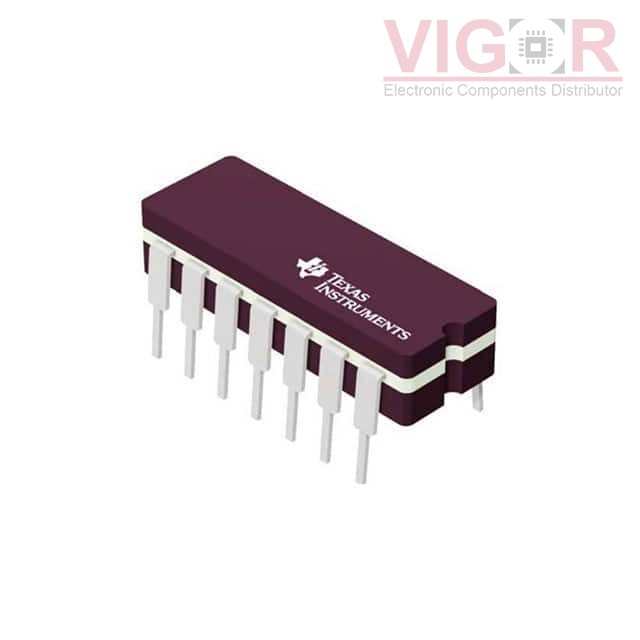

Image is for reference,
please contact us to get the real picture

Part No :: SN74AC74NG4

Manufacturer: Texas Instruments

Description: IC FF D-TYPE DUAL 1BIT 14DIP

Catalog: Logic - Flip Flops

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: SN74AC74NG4 PDF

Availability: 1466 pieces

Unit Price: ~~$0.24327~~

Current price of SN74AC74NG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SN74AC74NG4 Specifications

Type	Description
Series:	74AC
Package:	Tube
Part Status:	Active
Function:	Set(Preset) and Reset
Type:	D-Type
Output Type:	Complimentary
Number of Elements:	2
Number of Bits per Element:	1
Clock Frequency:	160 MHz
Max Propagation Delay @ V, Max CL:	10ns @ 5V, 50pF
Trigger Type:	Positive Edge
Current - Output High, Low:	24mA, 24mA
Voltage - Supply:	2V ~ 6V
Current - Quiescent (Iq):	2 µA
Input Capacitance:	3 pF
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Through Hole
Supplier Device Package:	14-PDIP
Package / Case:	14-DIP (0.300", 7.62mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
