SN74LV1T02DCKRG4

SN74LV1T02DCKRG4

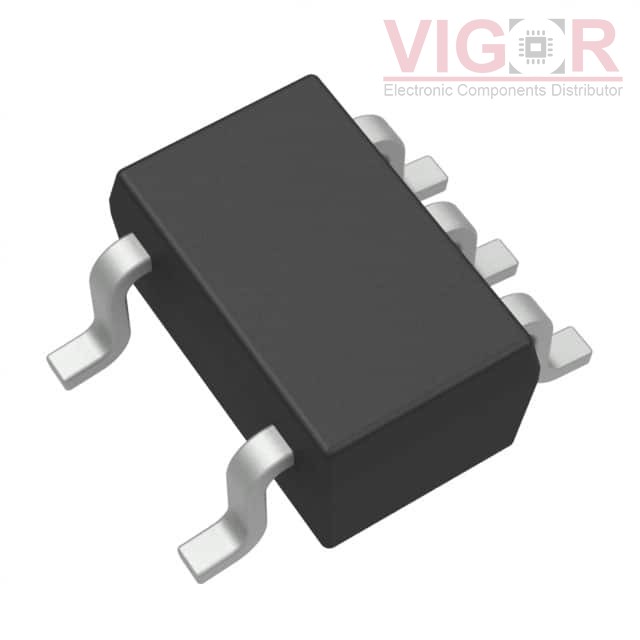

Image is for reference,
please contact us to get the real picture

Part No :

SN74LV1T02DCKRG4

Manufacturer
Texas Instruments
Description
IC GATE NOR 1CH 2-INP SC70-5
Catalog
Logic - Gates and Inverters
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
SN74LV1T02DCKRG4 PDF
Availability
9000 pieces
Unit Price
$0.12815

Current price of SN74LV1T02DCKRG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SN74LV1T02DCKRG4 Specifications
Type Description
Series:74LV
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Logic Type:NOR Gate
Number of Circuits:1
Number of Inputs:2
Features:-
Voltage - Supply:1.6V ~ 5.5V
Current - Quiescent (Max):10 µA
Current - Output High, Low:8mA, 8mA
Logic Level - Low:0.58V ~ 0.8V
Logic Level - High:0.94V ~ 2.1V
Max Propagation Delay @ V, Max CL:7ns @ 5V, 30pF
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:SC-70-5
Package / Case:5-TSSOP, SC-70-5, SOT-353
