LNK6774V

LNK6774V

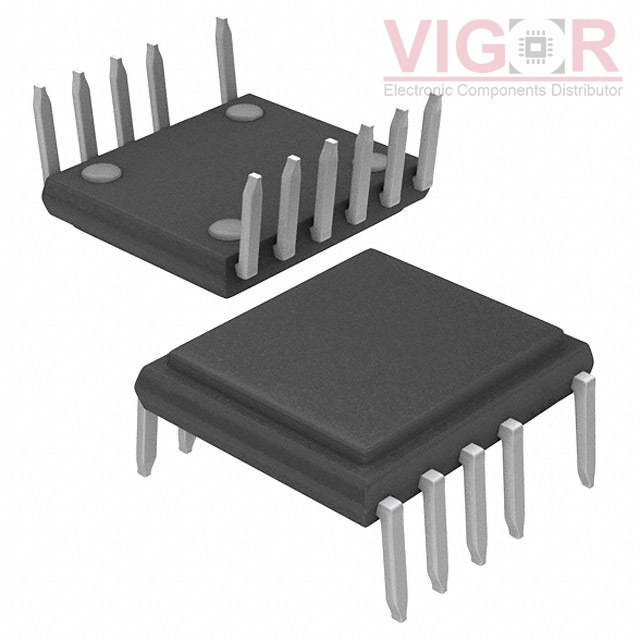

Image is for reference,
please contact us to get the real picture

Part No :

LNK6774V

Manufacturer
Power Integrations
Description
IC OFF-LINE SWITCH PWM 12DIP
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
LNK6774V PDF
Availability
2900 pieces
Unit Price
$0.74000

Current price of LNK6774V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LNK6774V Specifications
Type Description
Series:LinkSwitch™-HP
Package:Tube
Part Status:Active
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:725V
Topology:Flyback
Voltage - Start Up:-
Voltage - Supply (Vcc/Vdd):-
Duty Cycle:64%
Frequency - Switching:120kHz ~ 136kHz
Power (Watts):28 W
Fault Protection:Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features:-
Operating Temperature:-40°C ~ 150°C (TJ)
Package / Case:12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad
Supplier Device Package:eDIP-12
Mounting Type:Through Hole
