FSFR1800HSL

FSFR1800HSL

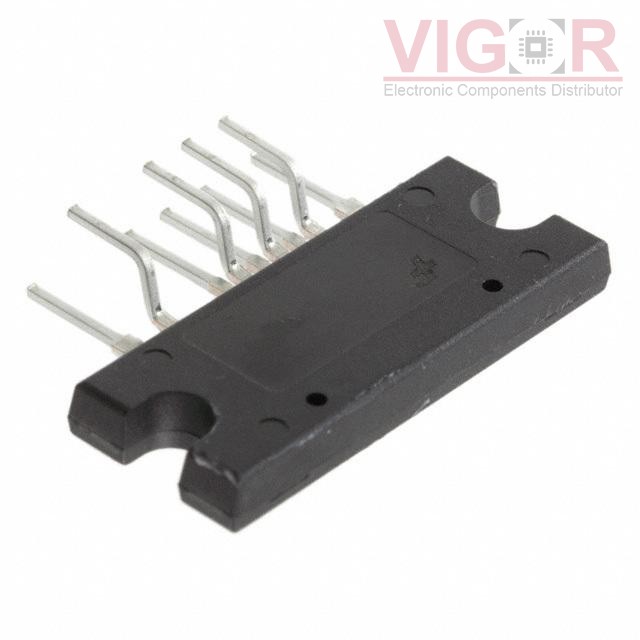

Image is for reference,
please contact us to get the real picture

Part No :

FSFR1800HSL

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC FPS HALF BRIDGE RES CONV 9SIP
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
FSFR1800HSL PDF
Availability
500 pieces
Unit Price
$3.28000

Current price of FSFR1800HSL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FSFR1800HSL Specifications
Type Description
Series:FSFR-HS
Package:Tube
Part Status:Active
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:500V
Topology:Half-Bridge
Voltage - Start Up:12.5 V
Voltage - Supply (Vcc/Vdd):10V ~ 25V
Duty Cycle:50%
Frequency - Switching:Up to 600kHz
Power (Watts):260 W
Fault Protection:Current Limiting, Over Temperature, Over Voltage
Control Features:Frequency Control
Operating Temperature:-40°C ~ 130°C (TJ)
Package / Case:10-SIP Module, 9 Leads, Formed Leads
Supplier Device Package:9-SIP (L forming)
Mounting Type:Through Hole
