NCP1077BAP130G

NCP1077BAP130G

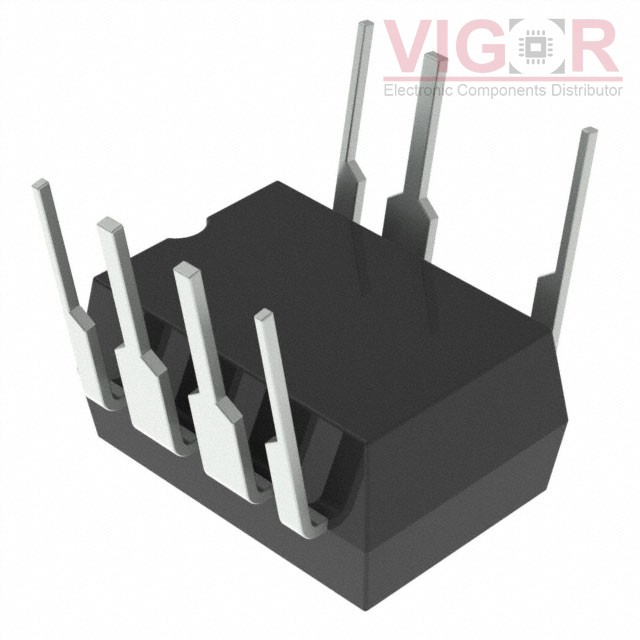

Image is for reference,
please contact us to get the real picture

Part No :

NCP1077BAP130G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC OFF-LINE SWITCHER
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
NCP1077BAP130G PDF
Availability
915 pieces
Unit Price
$1.11640

Current price of NCP1077BAP130G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NCP1077BAP130G Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:700V
Topology:Flyback
Voltage - Start Up:8.4 V
Voltage - Supply (Vcc/Vdd):6.5V ~ 20V
Duty Cycle:68%
Frequency - Switching:130kHz
Power (Watts):31 W
Fault Protection:Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit
Control Features:-
Operating Temperature:-40°C ~ 125°C (TJ)
Package / Case:8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package:8-DIP
Mounting Type:Through Hole
