ICE3AR4780JGXUMA1

ICE3AR4780JGXUMA1

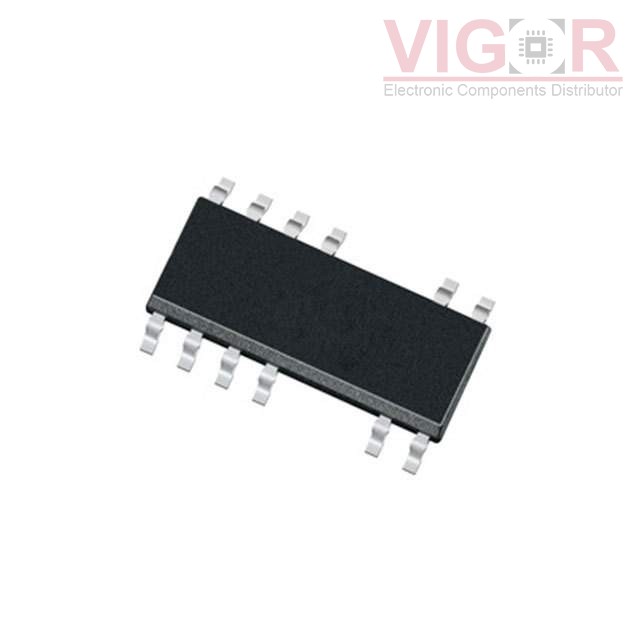

Image is for reference,
please contact us to get the real picture

Part No :

ICE3AR4780JGXUMA1

Manufacturer
IR (Infineon Technologies)
Description
IC OFFLN CONV FLYBACK 12DSO
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
ICE3AR4780JGXUMA1 PDF
Availability
125 pieces
Unit Price
$1.04685

Current price of ICE3AR4780JGXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ICE3AR4780JGXUMA1 Specifications
Type Description
Series:CoolMOS™, CoolSET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:800V
Topology:Flyback
Voltage - Start Up:17 V
Voltage - Supply (Vcc/Vdd):10.5V ~ 25V
Duty Cycle:75%
Frequency - Switching:100kHz
Power (Watts):29 W
Fault Protection:Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features:-
Operating Temperature:-40°C ~ 125°C (TJ)
Package / Case:12-BSOP (0.295", 7.50mm Width)
Supplier Device Package:PG-DSO-12
Mounting Type:Surface Mount
