AP39303S16-13

AP39303S16-13

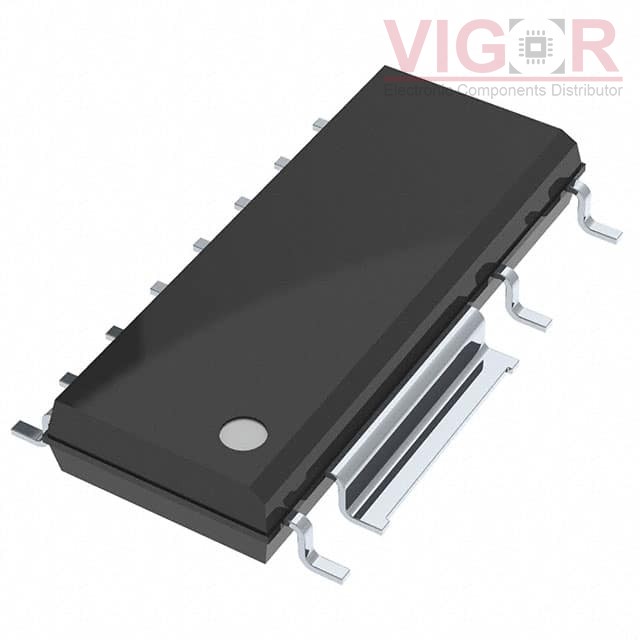

Image is for reference,
please contact us to get the real picture

Part No :

AP39303S16-13

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
ACDC PWM SWITCHER HSOP-16
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
AP39303S16-13 PDF
Availability
4000 pieces
Unit Price
$1.48000

Current price of AP39303S16-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AP39303S16-13 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:700V
Topology:Flyback
Voltage - Start Up:15.8 V
Voltage - Supply (Vcc/Vdd):10V ~ 28V
Duty Cycle:-
Frequency - Switching:24kHz ~ 120kHz
Power (Watts):-
Fault Protection:Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features:-
Operating Temperature:-40°C ~ 85°C (TA)
Package / Case:16-SOIC (0.154", 3.90mm Width), 12 Leads, Fused Leads
Supplier Device Package:16-HSOP
Mounting Type:Surface Mount
