STK534U362C-E

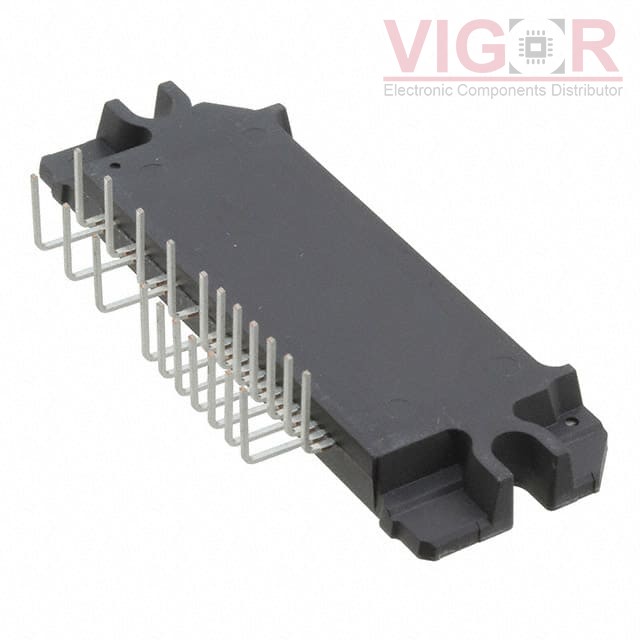

Image is for reference,
please contact us to get the real picture

Part No :: STK534U362C-E

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC MOTOR DRIVER 29SIP

Catalog: PMIC - Full, Half-Bridge Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: STK534U362C-E PDF

Availability: 8428 pieces

Unit Price: ~~$12.74636~~

Current price of STK534U362C-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STK534U362C-E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Not For New Designs
Output Configuration:	Half Bridge (3)
Applications:	AC Motors
Interface:	Logic
Load Type:	Inductive
Technology:	IGBT
Rds On (Typ):	-
Current - Output / Channel:	10A
Current - Peak Output:	20A
Voltage - Supply:	12.5V ~ 17.5V
Voltage - Load:	450V (Max)
Operating Temperature:	-20°C ~ 150°C (TJ)
Features:	Bootstrap Circuit
Fault Protection:	UVLO
Mounting Type:	Through Hole
Package / Case:	29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
