L9959T-TR-D

L9959T-TR-D

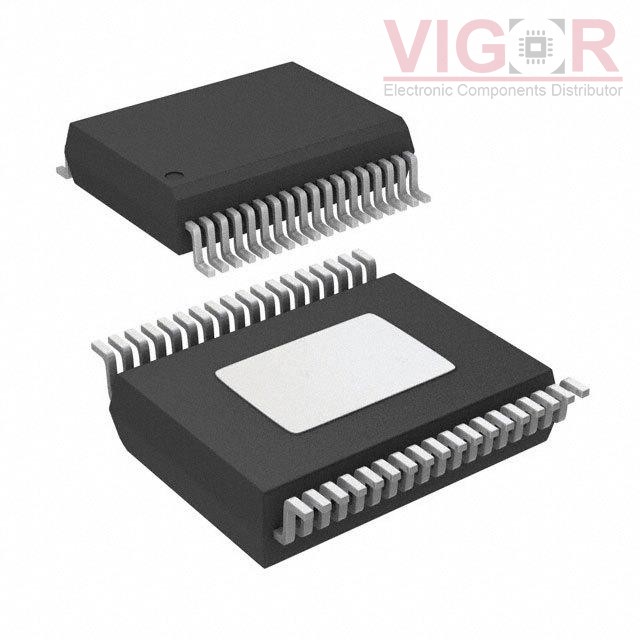

Image is for reference,
please contact us to get the real picture

Part No :

L9959T-TR-D

Manufacturer
STMicroelectronics
Description
IC H-BRIDGE HIGH SIDE 36PSSOP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
L9959T-TR-D PDF
Availability
3333 pieces
Unit Price
$4.55000

Current price of L9959T-TR-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

L9959T-TR-D Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Output Configuration:Half Bridge (2)
Applications:General Purpose
Interface:SPI
Load Type:Inductive, Capacitive, Resistive
Technology:PMOS
Rds On (Typ):-
Current - Output / Channel:3A
Current - Peak Output:-
Voltage - Supply:4.5V ~ 5.5V
Voltage - Load:5V ~ 28V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:-
Fault Protection:Over Temperature, Short Circuit
Mounting Type:Surface Mount
Package / Case:36-PowerFSOP (0.295", 7.50mm Width)
Supplier Device Package:PowerSSO-36 EPD
