LTC7060JMSE#WPBF

LTC7060JMSE#WPBF

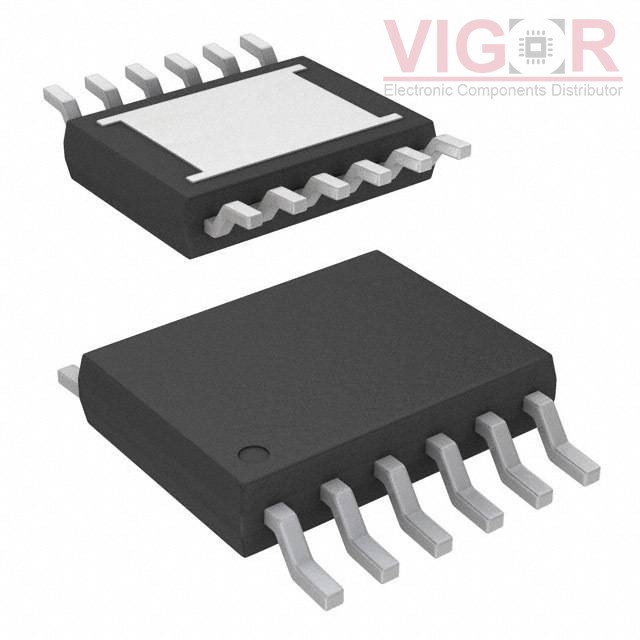

Image is for reference,
please contact us to get the real picture

Part No :

LTC7060JMSE#WPBF

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
100V HALF BRIDGE DRIVER W/ FLOAT
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
LTC7060JMSE#WPBF PDF
Availability
2625 pieces
Unit Price
$3.65000

Current price of LTC7060JMSE#WPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LTC7060JMSE#WPBF Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Configuration:Half Bridge (2)
Applications:General Purpose
Interface:PWM
Load Type:Capacitive
Technology:Power MOSFET
Rds On (Typ):1.5Ohm LS, 1.5mOhm HS
Current - Output / Channel:-
Current - Peak Output:6A
Voltage - Supply:6V ~ 14V
Voltage - Load:6V ~ 14V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Bootstrap Circuit
Fault Protection:Shoot-Through, UVLO
Mounting Type:Surface Mount
Package / Case:12-TSSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package:12-MSOP-EP
