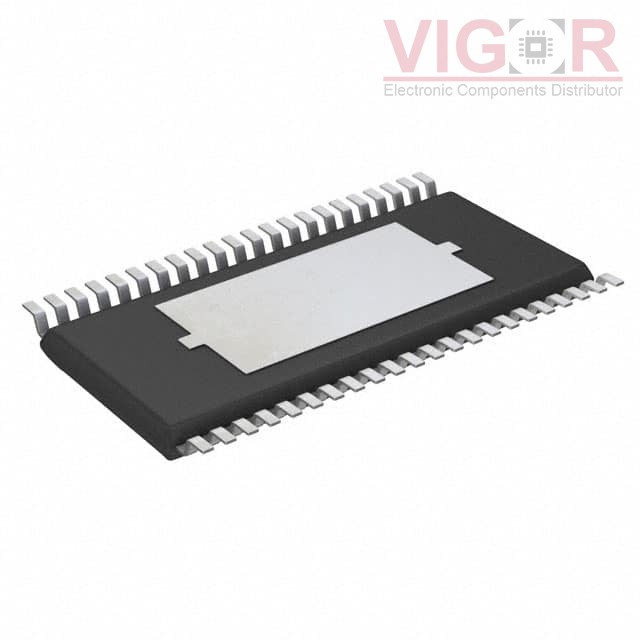

DRV8412DDW

DRV8412DDW

Image is for reference,
please contact us to get the real picture

Part No :

DRV8412DDW

Manufacturer
Texas Instruments
Description
IC BRIDGE DRIVER PAR 44HTSSOP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
DRV8412DDW PDF
Availability
174 pieces
Unit Price
$8.93000

Current price of DRV8412DDW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DRV8412DDW Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Configuration:Half Bridge (4)
Applications:DC Motors, Stepper Motors
Interface:PWM
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):110mOhm LS, 110mOhm HS
Current - Output / Channel:3A
Current - Peak Output:6A
Voltage - Supply:10.8V ~ 13.2V
Voltage - Load:0V ~ 52.5V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Status Flag
Fault Protection:Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type:Surface Mount
Package / Case:44-TSSOP (0.244", 6.20mm Width) Exposed Pad
Supplier Device Package:44-HTSSOP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT BRD1267C-TL

BRD1267C-TL

400W MOTOR DRIVER POWER IC
HOT SMA6864MZ LF2452

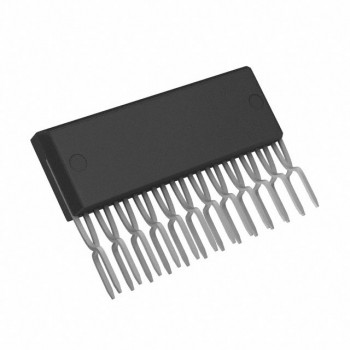

SMA6864MZ LF2452

IC MOTOR DRIVER DC 3PH 24SIP
HOT STDRIVE101

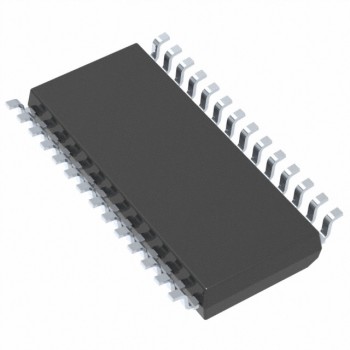

STDRIVE101
