BD6220HFP-TR

BD6220HFP-TR

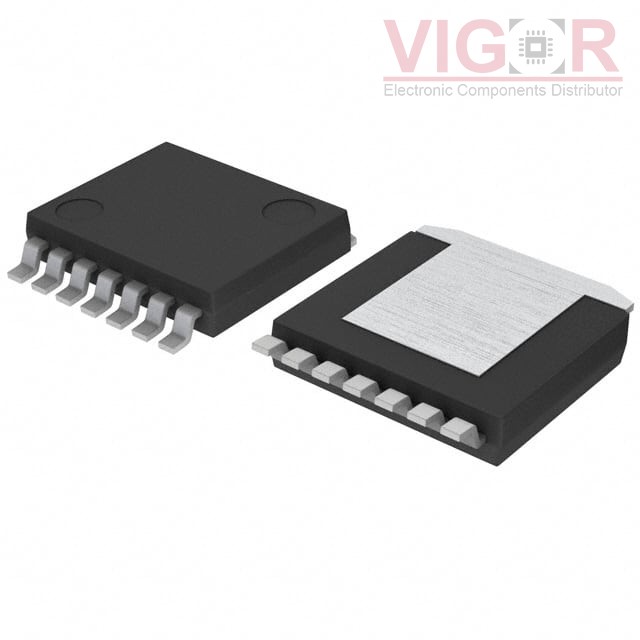

Image is for reference,
please contact us to get the real picture

Part No :

BD6220HFP-TR

Manufacturer
ROHM Semiconductor
Description
IC MOTOR DRIVER PAR HRP7
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
BD6220HFP-TR PDF
Availability
3732 pieces
Unit Price
$3.13000

Current price of BD6220HFP-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BD6220HFP-TR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Not For New Designs
Output Configuration:Half Bridge (2)
Applications:DC Motors, General Purpose
Interface:Logic
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):1.5Ohm
Current - Output / Channel:500mA
Current - Peak Output:-
Voltage - Supply:6V ~ 15V
Voltage - Load:6V ~ 15V
Operating Temperature:-40°C ~ 85°C (TA)
Features:-
Fault Protection:Current Limiting, Over Temperature, Over Voltage, UVLO
Mounting Type:Surface Mount
Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package:HRP7
