TLE9201SGAUMA1

TLE9201SGAUMA1

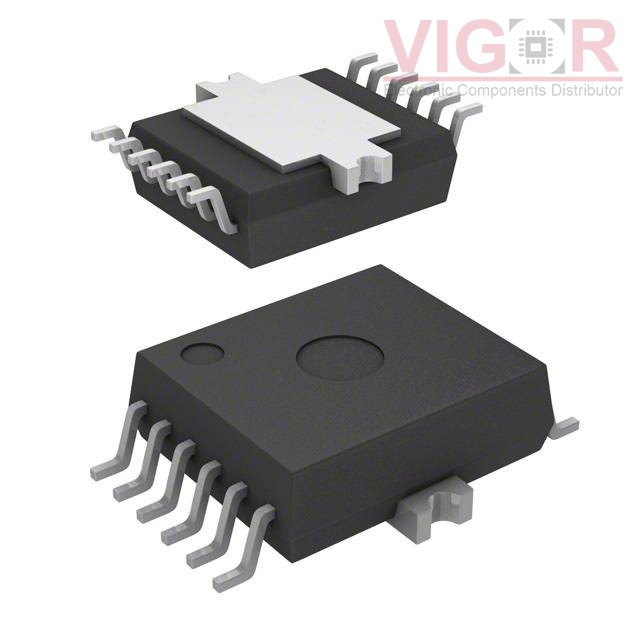

Image is for reference,
please contact us to get the real picture

Part No :

TLE9201SGAUMA1

Manufacturer
IR (Infineon Technologies)
Description
IC DRIVER 12DSO
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
TLE9201SGAUMA1 PDF
Availability
4451 pieces
Unit Price
$4.05000

Current price of TLE9201SGAUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLE9201SGAUMA1 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Half Bridge (2)
Applications:DC Motors, General Purpose
Interface:PWM, SPI
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):100mOhm LS, 100mOhm HS
Current - Output / Channel:6A
Current - Peak Output:-
Voltage - Supply:5V ~ 28V
Voltage - Load:5V ~ 28V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:-
Fault Protection:Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting Type:Surface Mount
Package / Case:12-BSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package:PG-DSO-12-17
