FDMF6824A

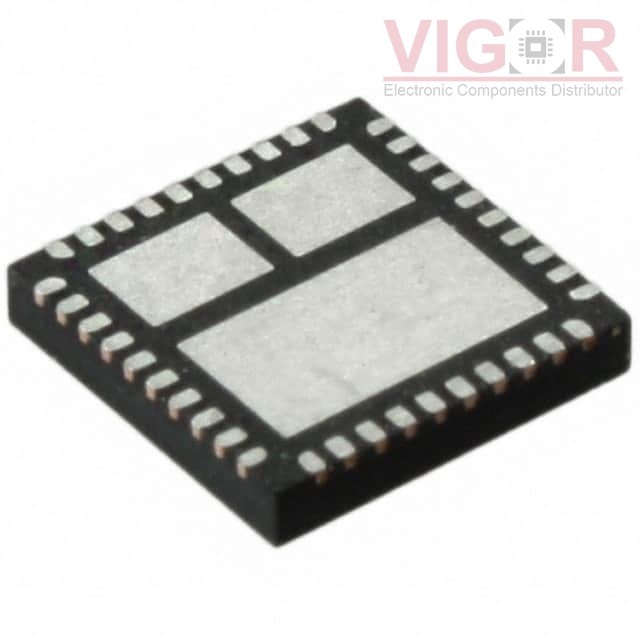

Image is for reference,
please contact us to get the real picture

Part No :: FDMF6824A

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOD DRMOS HIGH PERF 40QFN

Catalog: PMIC - Full, Half-Bridge Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 23 - Jul 27 2025

DataSheet: FDMF6824A PDF

Availability: 790 pieces

Unit Price: ~~$2.89000~~

Current price of FDMF6824A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FDMF6824A Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Half Bridge
Applications:	Synchronous Buck Converters
Interface:	PWM
Load Type:	Inductive
Technology:	DrMOS
Rds On (Typ):	1Ohm LS, 1Ohm HS
Current - Output / Channel:	60A
Current - Peak Output:	-
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Load:	3V ~ 16V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Bootstrap Circuit, Status Flag
Fault Protection:	Over Temperature, Shoot-Through, UVLO
Mounting Type:	Surface Mount
Package / Case:	40-PowerTFQFN
Supplier Device Package:	40-PQFN (6x6)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
