MC33HB2001FK

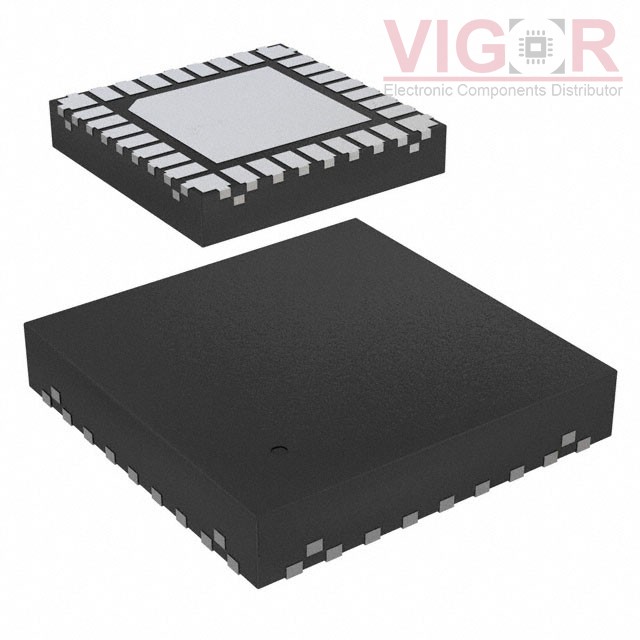

Image is for reference,
please contact us to get the real picture

Part No :: MC33HB2001FK

Manufacturer: NXP Semiconductors

Description: IC HALF-BRIDGE DRIVER SPI 32PQFN

Catalog: PMIC - Full, Half-Bridge Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 23 - Jul 27 2025

DataSheet: MC33HB2001FK PDF

Availability: 1183 pieces

Unit Price: ~~$8.75000~~

Current price of MC33HB2001FK is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MC33HB2001FK Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Output Configuration:	Half Bridge (2)
Applications:	DC Motors, General Purpose
Interface:	SPI
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	125mOhm LS (Max), 125mOhm HS (Max)
Current - Output / Channel:	-
Current - Peak Output:	-
Voltage - Supply:	5V ~ 28V
Voltage - Load:	5V ~ 28V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Slew Rate Controlled
Fault Protection:	Over Temperature, Over Voltage, UVLO
Mounting Type:	Surface Mount
Package / Case:	32-PowerQFN
Supplier Device Package:	32-PQFN (8x8)

Please confirm the specifications of the products when ordering.
