L99SD01-E

L99SD01-E

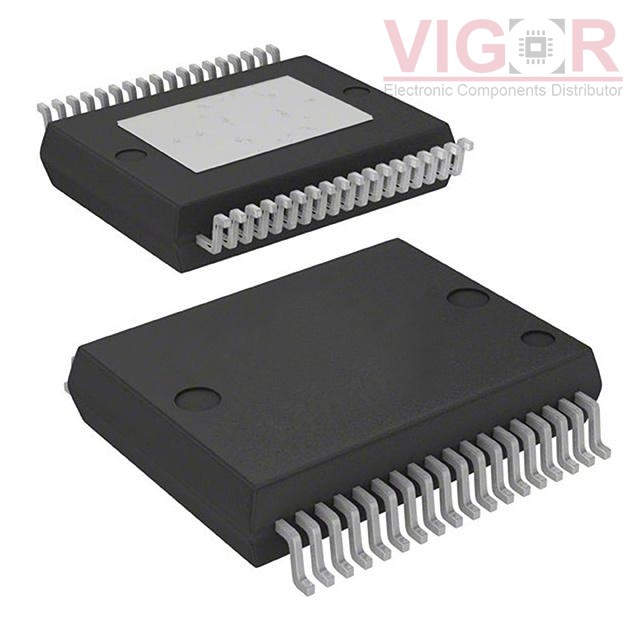

Image is for reference,
please contact us to get the real picture

Part No :

L99SD01-E

Manufacturer
STMicroelectronics
Description
IC SOLENOID DRIVER POWERSSO36
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
L99SD01-E PDF
Availability
2500 pieces
Unit Price
$3.83075

Current price of L99SD01-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

L99SD01-E Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Configuration:Half Bridge
Applications:Solenoids
Interface:I²C, PWM
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):150mOhm LS (Max), 150mOhm HS (Max)
Current - Output / Channel:14A
Current - Peak Output:-
Voltage - Supply:6V ~ 28V
Voltage - Load:45V (Max)
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Status Flag
Fault Protection:Current Limiting, Open Load Detect, Over Temperature, Over Voltage, UVLO
Mounting Type:Surface Mount
Package / Case:36-PowerBFSOP (0.295", 7.50mm Width)
Supplier Device Package:PowerSSO-36
