STK551U392A-E

STK551U392A-E

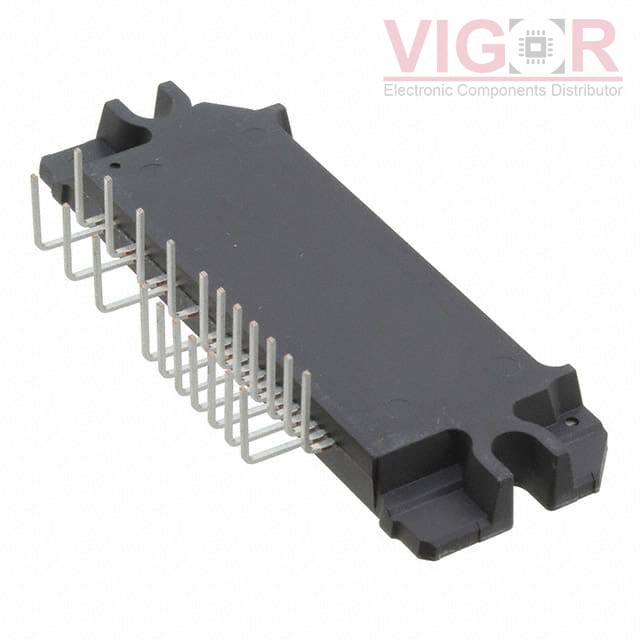

Image is for reference,
please contact us to get the real picture

Part No :

STK551U392A-E

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC BRIDGE DRIVER PAR 29SIP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
STK551U392A-E PDF
Availability
21136 pieces
Unit Price
$16.47000

Current price of STK551U392A-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STK551U392A-E Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Output Configuration:Half Bridge (3)
Applications:AC Motors
Interface:Logic
Load Type:Inductive
Technology:IGBT
Rds On (Typ):-
Current - Output / Channel:10A
Current - Peak Output:20A
Voltage - Supply:12.5V ~ 17.5V
Voltage - Load:450V (Max)
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Bootstrap Circuit, Latch Function, Status Flag
Fault Protection:Current Limiting, Shoot-Through, UVLO
Mounting Type:Through Hole
Package / Case:29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package:21-SIP
