IFX9202EDXUMA1

IFX9202EDXUMA1

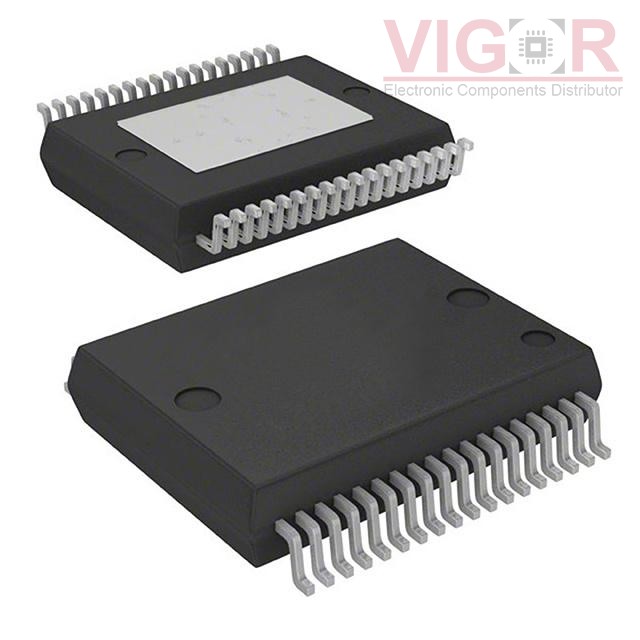

Image is for reference,
please contact us to get the real picture

Part No :

IFX9202EDXUMA1

Manufacturer
IR (Infineon Technologies)
Description
IC H-BRIDGE DVR 6A SPI 36DSOP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
IFX9202EDXUMA1 PDF
Availability
374 pieces
Unit Price
$6.43000

Current price of IFX9202EDXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IFX9202EDXUMA1 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Output Configuration:Half Bridge (2)
Applications:DC Motors, General Purpose
Interface:PWM
Load Type:Inductive
Technology:-
Rds On (Typ):100mOhm LS + HS
Current - Output / Channel:-
Current - Peak Output:-
Voltage - Supply:2.9V ~ 5.5V
Voltage - Load:5V ~ 36V
Operating Temperature:-40°C ~ 125°C (TJ)
Features:-
Fault Protection:Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type:Surface Mount
Package / Case:36-FSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package:PG-DSO-36-72
