L6206Q

L6206Q

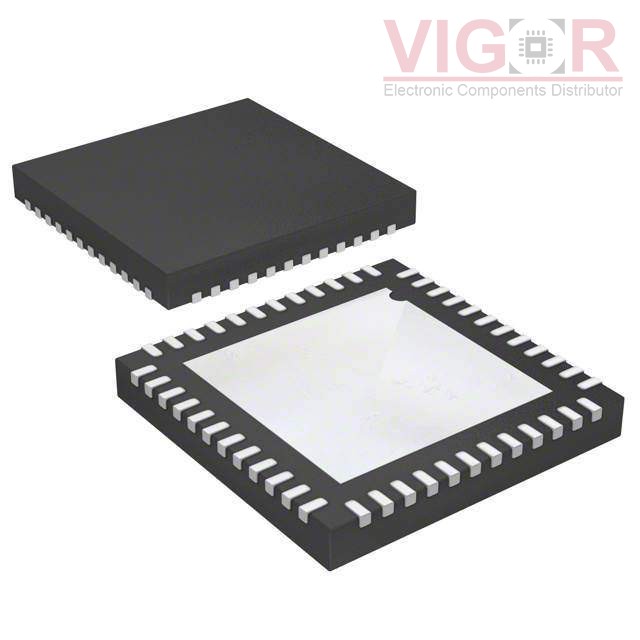

Image is for reference,
please contact us to get the real picture

Part No :

L6206Q

Manufacturer
STMicroelectronics
Description
IC MOTOR DRIVER PAR 48QFN
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
L6206Q PDF
Availability
117 pieces
Unit Price
$4.15000

Current price of L6206Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

L6206Q Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Output Configuration:Half Bridge (4)
Applications:DC Motors, Stepper Motors, Voltage Regulators
Interface:Logic
Load Type:Inductive
Technology:BCDMOS
Rds On (Typ):280mOhm LS, 340mOhm HS
Current - Output / Channel:2.5A
Current - Peak Output:5.6A
Voltage - Supply:8V ~ 52V
Voltage - Load:8V ~ 52V
Operating Temperature:-25°C ~ 125°C (TJ)
Features:Bootstrap Circuit
Fault Protection:Current Limiting, Over Temperature, UVLO
Mounting Type:Surface Mount
Package / Case:48-VFQFN Exposed Pad
Supplier Device Package:48-VFQFPN (7x7)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT AP1013DEN

AP1013DEN

IC MOTOR DRIVER 18V 16QFN
HOT SLA6868MZ LF2171

SLA6868MZ LF2171

IC MOTOR DRIVER DC 3PH 24SIP

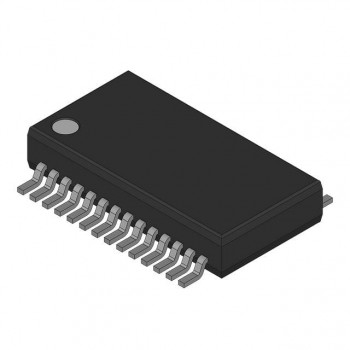

HOT UBA2033TS/N3118
