FDMF5821DC

FDMF5821DC

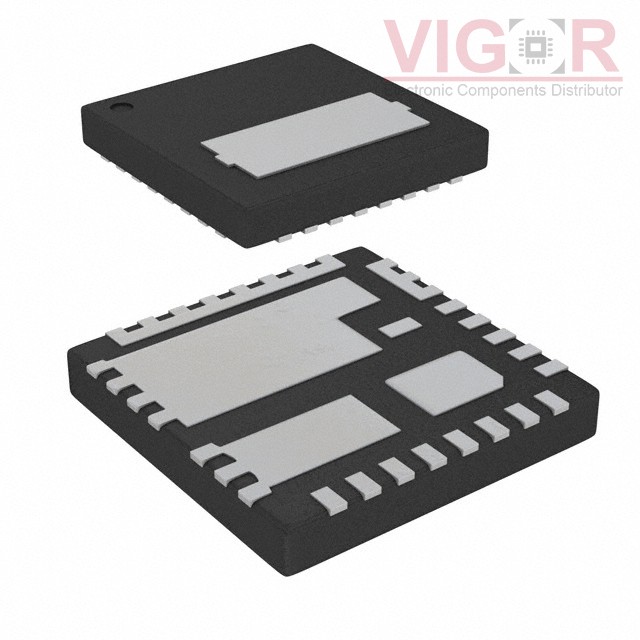

Image is for reference,
please contact us to get the real picture

Part No :

FDMF5821DC

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC SPS HALF-BRIDGE DRVR 31PQFN
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
FDMF5821DC PDF
Availability
185 pieces
Unit Price
$2.91000

Current price of FDMF5821DC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FDMF5821DC Specifications
Type Description
Series:PowerTrench®, SyncFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Half Bridge
Applications:Synchronous Buck Converters
Interface:PWM
Load Type:Inductive
Technology:UMOS
Rds On (Typ):470mOhm LS, 680mOhm HS
Current - Output / Channel:60A
Current - Peak Output:-
Voltage - Supply:4.5V ~ 5.5V
Voltage - Load:4.5V ~ 16V
Operating Temperature:-40°C ~ 125°C (TJ)
Features:Bootstrap Circuit, Latch Function, Status Flag
Fault Protection:Over Temperature, UVLO
Mounting Type:Surface Mount
Package / Case:31-PowerWFQFN
Supplier Device Package:31-PQFN (5x5)
