LCS702HG

LCS702HG

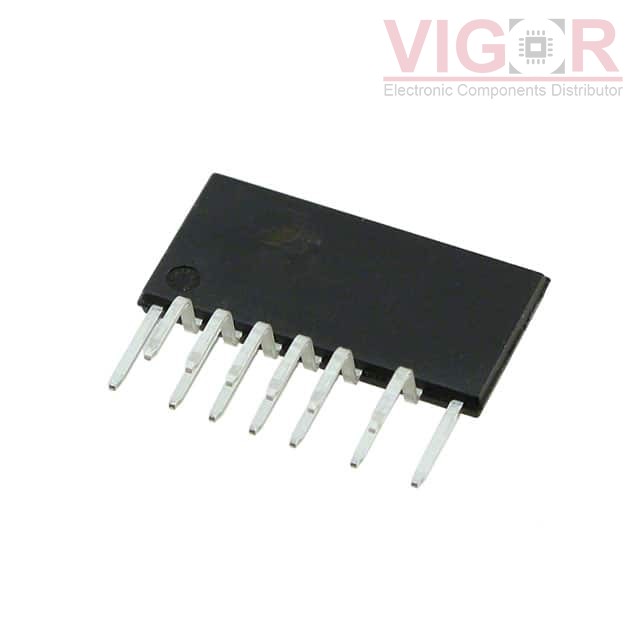

Image is for reference,
please contact us to get the real picture

Part No :

LCS702HG

Manufacturer
Power Integrations
Description
IC LLC CTRL MFET 220W ESIP16C
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
LCS702HG PDF
Availability
7923 pieces
Unit Price
$5.09000

Current price of LCS702HG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LCS702HG Specifications
Type Description
Series:HiperLCS™
Package:Tube
Part Status:Active
Output Configuration:Half Bridge
Applications:General Purpose
Interface:On/Off
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):740mOhm
Current - Output / Channel:-
Current - Peak Output:10.3A
Voltage - Supply:11.4V ~ 15V
Voltage - Load:11.4V ~ 15V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Auto Restart, Slew Rate Controlled
Fault Protection:Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting Type:Through Hole
Package / Case:16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Supplier Device Package:16-ESIP
