TLE94106ESXUMA1

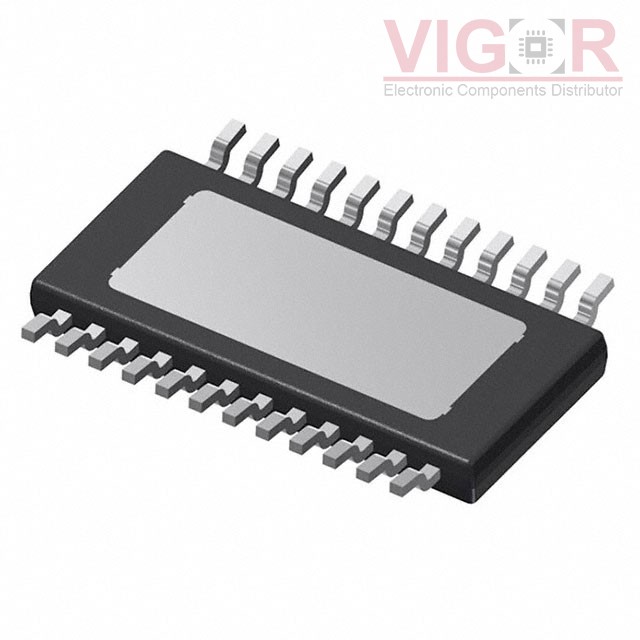

Image is for reference,
please contact us to get the real picture

Part No :: TLE94106ESXUMA1

Manufacturer: IR (Infineon Technologies)

Description: IC DRIVER HALF-BRIDGE 24TSDSO

Catalog: PMIC - Full, Half-Bridge Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: TLE94106ESXUMA1 PDF

Availability: 228 pieces

Unit Price: ~~$2.88000~~

Current price of TLE94106ESXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLE94106ESXUMA1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Half Bridge (6)
Applications:	DC Motors, General Purpose
Interface:	SPI
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	850mOhm LS, 850mOhm HS
Current - Output / Channel:	2A
Current - Peak Output:	-
Voltage - Supply:	3V ~ 5.5V
Voltage - Load:	5.5V ~ 18V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	-
Fault Protection:	Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type:	Surface Mount
Package / Case:	24-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package:	PG-TSDSO-24

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
