SIM6812M

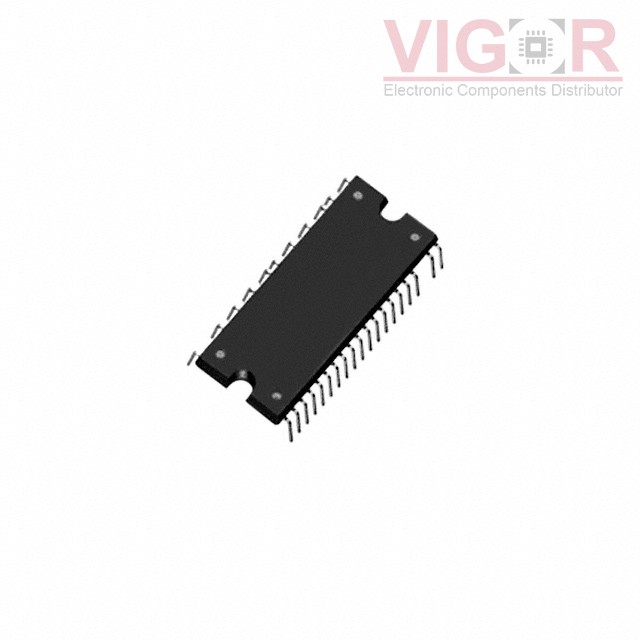

Image is for reference,
please contact us to get the real picture

Part No :: SIM6812M

Manufacturer: Sanken Electric Co., Ltd.

Description: IC BRIDGE DRIVER PAR 40DIP

Catalog: PMIC - Full, Half-Bridge Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: SIM6812M PDF

Availability: 881 pieces

Unit Price: ~~$5.90000~~

Current price of SIM6812M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SIM6812M Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Output Configuration:	Half Bridge (3)
Applications:	AC Motors
Interface:	Logic
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	2Ohm
Current - Output / Channel:	2.5A
Current - Peak Output:	3.75A
Voltage - Supply:	13.5V ~ 16.5V
Voltage - Load:	400V (Max)
Operating Temperature:	-20°C ~ 100°C (TA)
Features:	Bootstrap Circuit
Fault Protection:	Current Limiting, Over Temperature, UVLO
Mounting Type:	Through Hole
Package / Case:	40-DIP (0.657", 16.70mm), 29 Leads
Supplier Device Package:	40-DIP LF2971

Please confirm the specifications of the products when ordering.
