STK5F1U3C3D-E

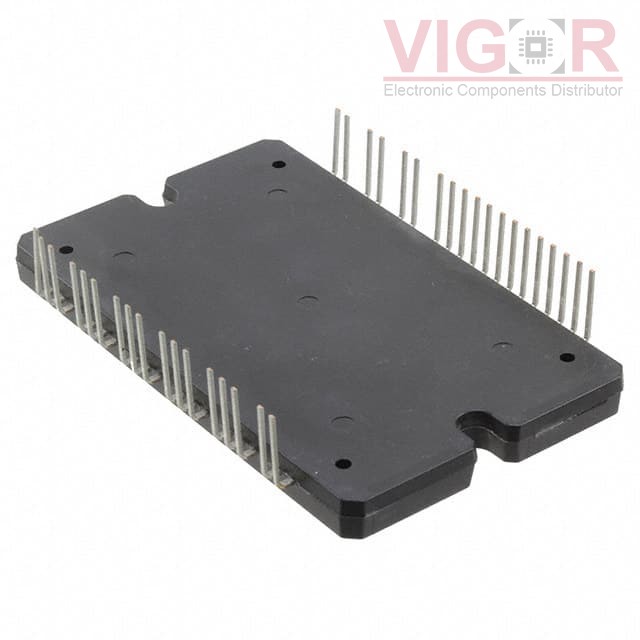

Image is for reference,
please contact us to get the real picture

Part No :: STK5F1U3C3D-E

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC MOTOR DRIVER

Catalog: PMIC - Full, Half-Bridge Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: STK5F1U3C3D-E PDF

Availability: 1524 pieces

Unit Price: ~~$0.00000~~

Current price of STK5F1U3C3D-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STK5F1U3C3D-E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Half Bridge
Applications:	AC Motors
Interface:	Logic
Load Type:	Inductive
Technology:	IGBT
Rds On (Typ):	-
Current - Output / Channel:	15A
Current - Peak Output:	49A
Voltage - Supply:	12.5V ~ 17.5V
Voltage - Load:	450V (Max)
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Status Flag
Fault Protection:	Current Limiting
Mounting Type:	Through Hole
Package / Case:	44-DIP Module, 37 Leads
Supplier Device Package:	44-610AC-DIP4-UL
