E-L6201PSTR

E-L6201PSTR

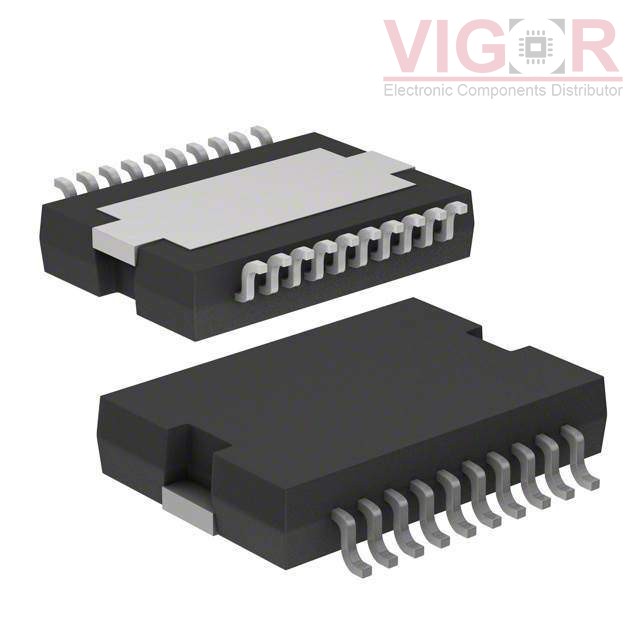

Image is for reference,
please contact us to get the real picture

Part No :

E-L6201PSTR

Manufacturer
STMicroelectronics
Description
IC BRIDGE DRIVER PAR 20POWERSO
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
E-L6201PSTR PDF
Availability
768 pieces
Unit Price
$0.00000

Current price of E-L6201PSTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

E-L6201PSTR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Output Configuration:Half Bridge (2)
Applications:DC Motors, General Purpose
Interface:Logic
Load Type:Inductive
Technology:BCDMOS
Rds On (Typ):300mOhm
Current - Output / Channel:4A
Current - Peak Output:-
Voltage - Supply:12V ~ 48V
Voltage - Load:12V ~ 48V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Bootstrap Circuit
Fault Protection:Over Temperature
Mounting Type:Surface Mount
Package / Case:20-SOIC (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package:PowerSO-20
