SA01-4

SA01-4

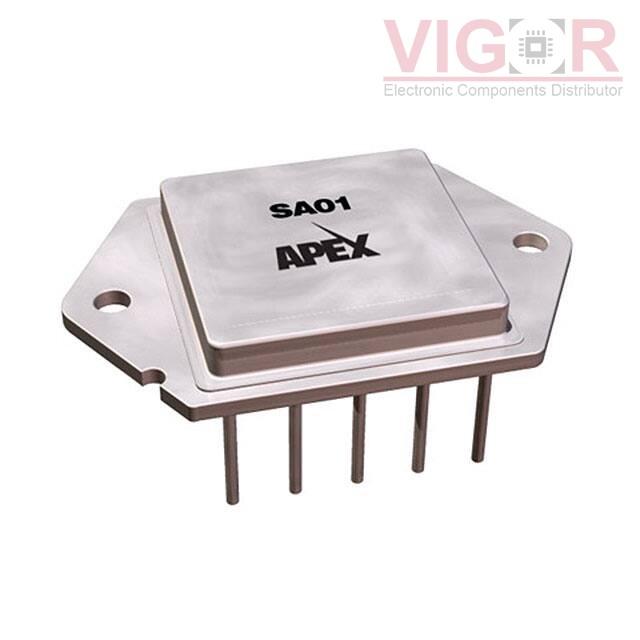

Image is for reference,
please contact us to get the real picture

Part No :

SA01-4

Manufacturer
Apex Microtechnology
Description
IC AMP PWM 100V 20A 10DIP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
SA01-4 PDF
Availability
2084 pieces
Unit Price
$0.00000

Current price of SA01-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SA01-4 Specifications
Type Description
Series:Apex Precision Power®
Package:Bulk
Part Status:Discontinued at Digi-Key
Output Configuration:Half Bridge (2)
Applications:DC Motors, General Purpose
Interface:PWM
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):250mOhm LS + HS
Current - Output / Channel:20A
Current - Peak Output:30A
Voltage - Supply:16V ~ 100V
Voltage - Load:16V ~ 100V
Operating Temperature:150°C (TJ)
Features:-
Fault Protection:Current Limiting, Over Temperature
Mounting Type:Through Hole
Package / Case:10-PowerDIP Module
Supplier Device Package:10-PowerDip
