AAT4901IJS-3-T1

AAT4901IJS-3-T1

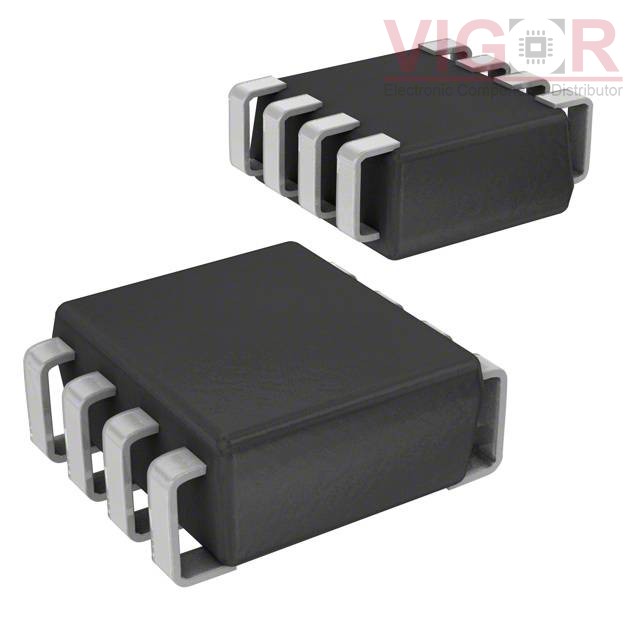

Image is for reference,
please contact us to get the real picture

Part No :

AAT4901IJS-3-T1

Manufacturer
Skyworks Solutions, Inc.
Description
IC DRIVER GATE HALF BRIDGE SC70
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
AAT4901IJS-3-T1 PDF
Availability
85000 pieces
Unit Price
$0.00000

Current price of AAT4901IJS-3-T1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AAT4901IJS-3-T1 Specifications
Type Description
Series:ASPM™, FastSwitch™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Output Configuration:Half Bridge (2)
Applications:DC Motors, Solenoids, Transformers
Interface:Logic
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):200mOhm LS, 240mOhm HS
Current - Output / Channel:700mA
Current - Peak Output:3A
Voltage - Supply:2V ~ 5.5V
Voltage - Load:2V ~ 5.5V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:-
Fault Protection:Over Temperature, Shoot-Through
Mounting Type:Surface Mount
Package / Case:8-TFSOJ (0.069", 1.75mm Width)
Supplier Device Package:8-SC70JW
