BTN7973BAUMA1

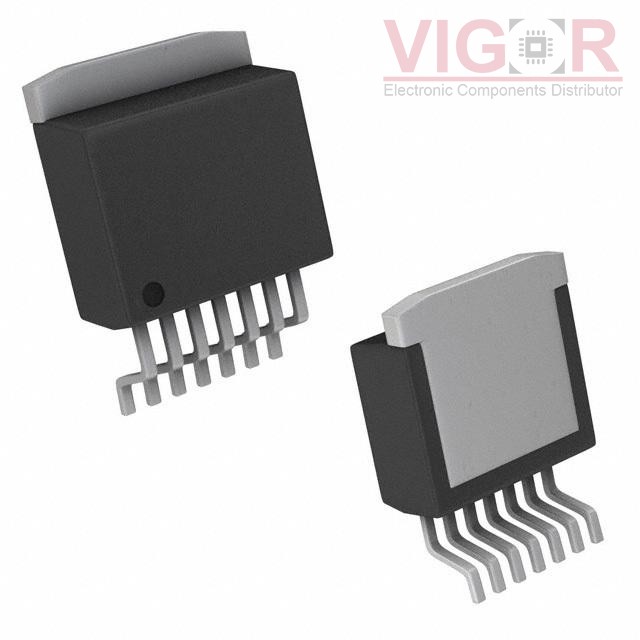

Image is for reference,
please contact us to get the real picture

Part No :: BTN7973BAUMA1

Manufacturer: IR (Infineon Technologies)

Description: IC NOVALITHIC 1/2 BRIDGE TO263-7

Catalog: PMIC - Full, Half-Bridge Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 22 - Jul 26 2025

DataSheet: BTN7973BAUMA1 PDF

Availability: 1848 pieces

Unit Price: ~~$0.00000~~

Current price of BTN7973BAUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BTN7973BAUMA1 Specifications

Type	Description
Series:	NovalithIC™
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Configuration:	Half Bridge
Applications:	DC Motors, General Purpose
Interface:	Logic
Load Type:	Inductive
Technology:	DMOS
Rds On (Typ):	9mOhm LS, 7mOhm HS
Current - Output / Channel:	44A
Current - Peak Output:	90A
Voltage - Supply:	4.5V ~ 28V
Voltage - Load:	4.5V ~ 28V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Latch Function, Slew Rate Controlled, Status Flag
Fault Protection:	Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting Type:	Surface Mount
Package / Case:	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package:	PG-TO263-7

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
