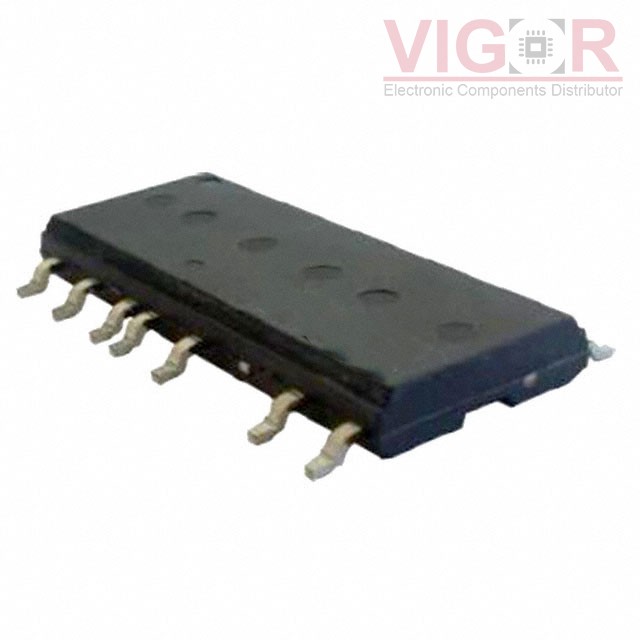

IRSM516-076PA

Image is for reference,
please contact us to get the real picture

Part No :

IRSM516-076PA

Manufacturer
IR (Infineon Technologies)
Description
IC MICRO MCM DRIVER 23SOP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
IRSM516-076PA PDF
Availability
431 pieces
Unit Price
$0.00000

Current price of IRSM516-076PA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:µIPM™-DIP
Package:Tube
Part Status:Discontinued at Digi-Key
Output Configuration:Half Bridge (3)
Applications:AC Motors
Interface:Logic
Load Type:Inductive
Technology:IGBT
Rds On (Typ):-
Current - Output / Channel:4A
Current - Peak Output:15A
Voltage - Supply:13.5V ~ 16.5V
Voltage - Load:480V (Max)
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Bootstrap Circuit
Fault Protection:UVLO
Mounting Type:Surface Mount
Package / Case:32-PowerSMD Module, 23 Leads
Supplier Device Package:23-SOP
