NJW4301M

NJW4301M

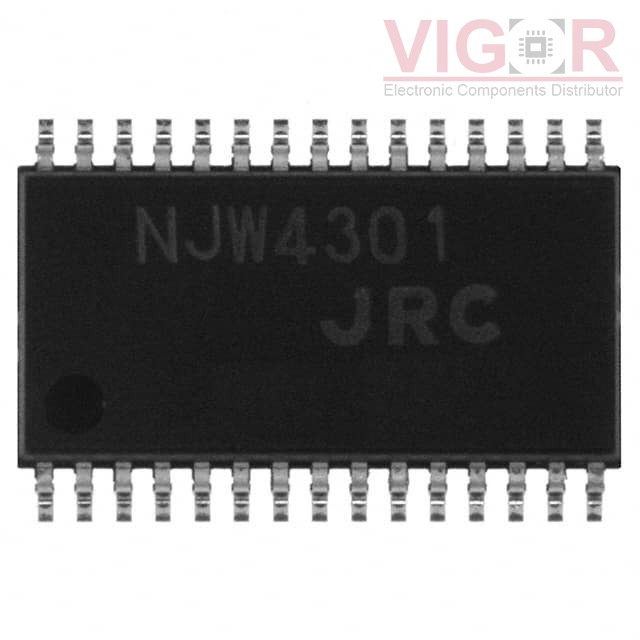

Image is for reference,
please contact us to get the real picture

Part No :

NJW4301M

Manufacturer
New Japan Radio (NJR)
Description
IC BRIDGE DRIVER 2CH 4V 30-SDMP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
NJW4301M PDF
Availability
173 pieces
Unit Price
$0.00000

Current price of NJW4301M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NJW4301M Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Output Configuration:Half Bridge (4)
Applications:DC Motors, General Purpose
Interface:Logic
Load Type:Inductive
Technology:Bi-CMOS
Rds On (Typ):-
Current - Output / Channel:-
Current - Peak Output:-
Voltage - Supply:4V ~ 12V
Voltage - Load:4V ~ 12V
Operating Temperature:-40°C ~ 85°C (TA)
Features:-
Fault Protection:Over Temperature
Mounting Type:Surface Mount
Package / Case:30-SDMP
Supplier Device Package:30-SDMP
