2EDL23N06PJXUMA1

2EDL23N06PJXUMA1

Image is for reference,

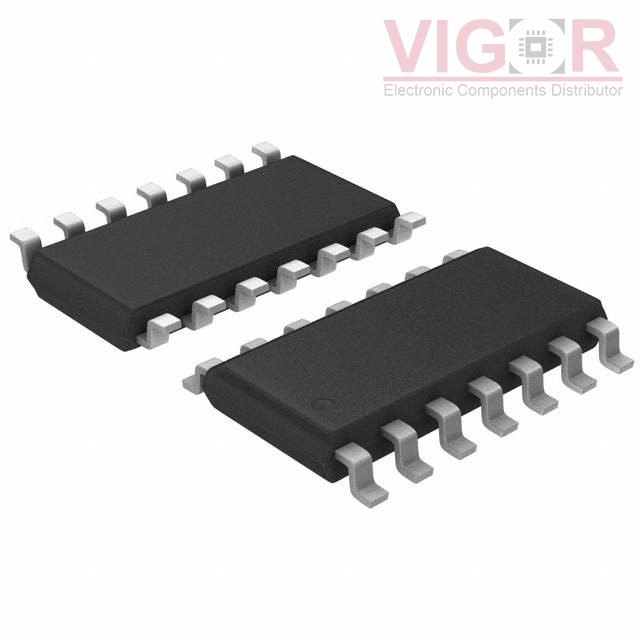

please contact us to get the real picture

Part No :

2EDL23N06PJXUMA1

Manufacturer
IR (Infineon Technologies)
Description
IC GATE DRVR HALF-BRIDGE 14DSO
Catalog
PMIC - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
2EDL23N06PJXUMA1 PDF
Availability
5794 pieces
Unit Price
$2.71000

Current price of 2EDL23N06PJXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2EDL23N06PJXUMA1 Specifications
Type Description
Series:EiceDriver™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Driven Configuration:Half-Bridge
Channel Type:Independent
Number of Drivers:2
Gate Type:N-Channel, P-Channel MOSFET
Voltage - Supply:10V ~ 17.5V
Logic Voltage - VIL, VIH:1.1V, 1.7V
Current - Peak Output (Source, Sink):1.8A, 2.3A
Input Type:Non-Inverting
High Side Voltage - Max (Bootstrap):600 V
Rise / Fall Time (Typ):48ns, 37ns
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:14-SOIC (0.154", 3.90mm Width)
Supplier Device Package:14-DSO
