MAX16826BATJ+

MAX16826BATJ+

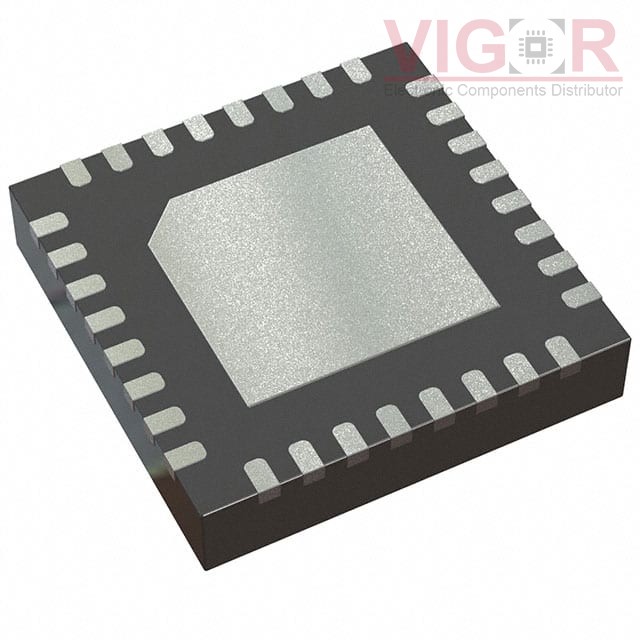

Image is for reference,
please contact us to get the real picture

Part No :

MAX16826BATJ+

Manufacturer
Maxim Integrated
Description
PROGRAMMABLE, 4-STRING HB LED DR
Catalog
PMIC - LED Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
MAX16826BATJ+ PDF
Availability
5015 pieces
Unit Price
$5.54717

Current price of MAX16826BATJ+ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAX16826BATJ+ Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Type:DC DC Controller
Topology:SEPIC, Step-Up (Boost)
Internal Switch(s):No
Number of Outputs:4
Voltage - Supply (Min):4.75V
Voltage - Supply (Max):24V
Voltage - Output:-
Current - Output / Channel:15mA
Frequency:100kHz ~ 1MHz
Dimming:PWM
Applications:Automotive, Backlight
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:32-WFQFN Exposed Pad
Supplier Device Package:32-TQFN (5x5)
