NCL30386B2DR2G

NCL30386B2DR2G

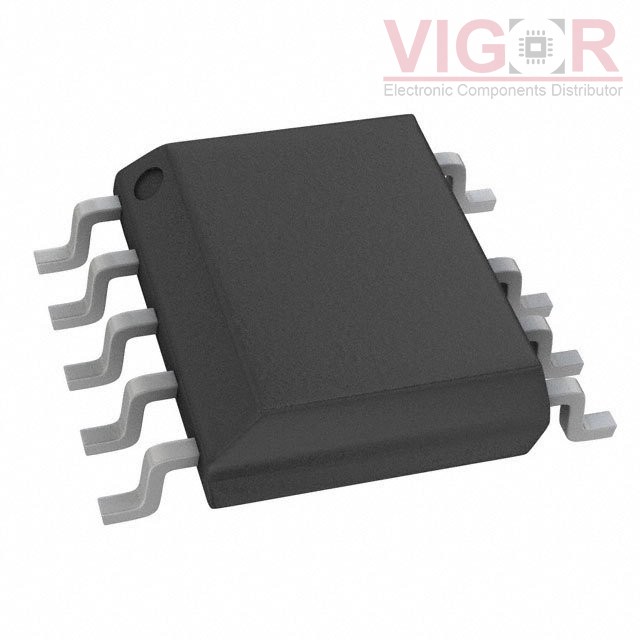

Image is for reference,
please contact us to get the real picture

Part No :

NCL30386B2DR2G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC PFC FLYBACK CTLR DIM 9SOIC
Catalog
PMIC - LED Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
NCL30386B2DR2G PDF
Availability
550 pieces
Unit Price
$0.51000

Current price of NCL30386B2DR2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NCL30386B2DR2G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Type:DC DC Controller
Topology:Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s):No
Number of Outputs:1
Voltage - Supply (Min):8.2V
Voltage - Supply (Max):20V
Voltage - Output:14V
Current - Output / Channel:4.7mA
Frequency:150kHz
Dimming:Analog, PWM
Applications:LED Lighting
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:10-SOP (0.154", 3.90mm Width), 9 Leads
Supplier Device Package:9-SOIC
