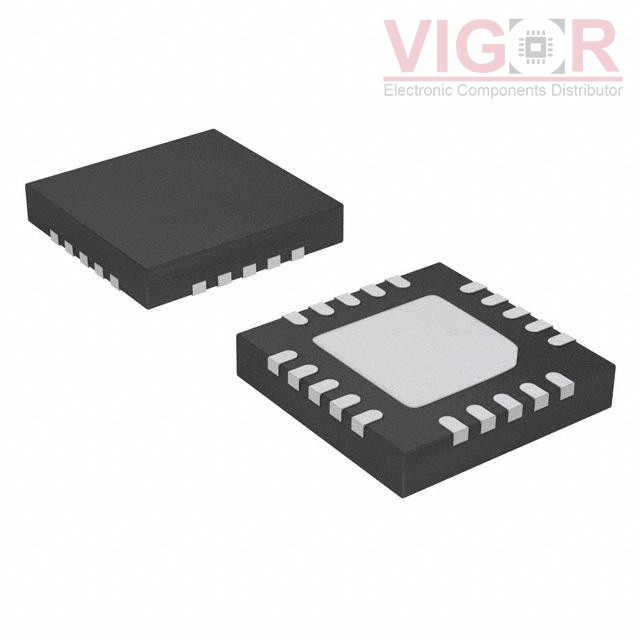

AL3158FSG-7

AL3158FSG-7

Image is for reference,
please contact us to get the real picture

Part No :

AL3158FSG-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC LED DRVR RGLTR DIM 30MA 20QFN
Catalog
PMIC - LED Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
AL3158FSG-7 PDF
Availability
3787 pieces
Unit Price
$0.85000

Current price of AL3158FSG-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AL3158FSG-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:DC DC Regulator
Topology:Switched Capacitor (Charge Pump)
Internal Switch(s):Yes
Number of Outputs:9
Voltage - Supply (Min):2.7V
Voltage - Supply (Max):5.5V
Voltage - Output:-
Current - Output / Channel:30mA
Frequency:1.2MHz
Dimming:PWM
Applications:Backlight
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:20-UFQFN Exposed Pad
Supplier Device Package:20-QFN-EP (3x3)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT A6274KLPTR-T-1

A6274KLPTR-T-1

IC LED DRVR LINEAR 60MA 20TSSOP

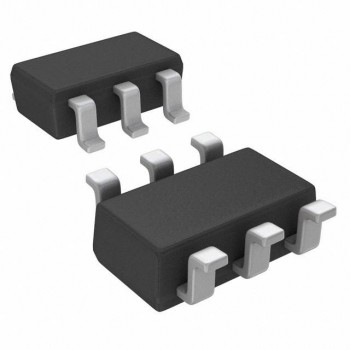

HOT AP5726WUG-7
