LP8556TMX-E04/NOPB

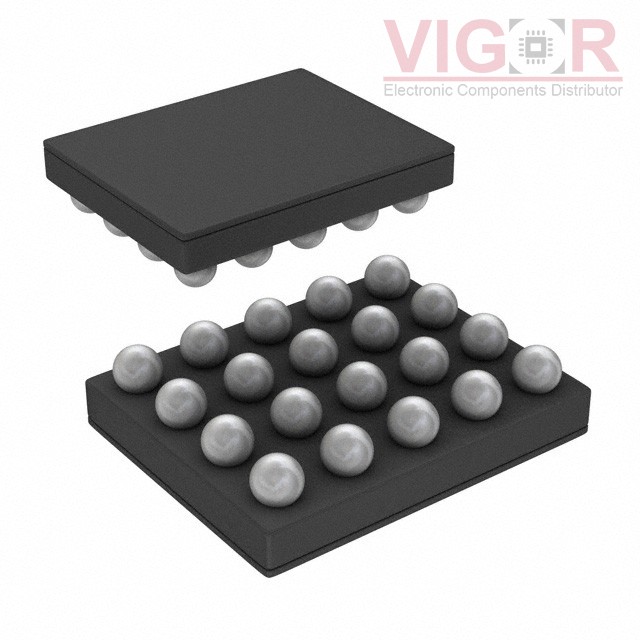

Image is for reference,
please contact us to get the real picture

Part No :: LP8556TMX-E04/NOPB

Manufacturer: Texas Instruments

Description: IC LED DRIVER RGLTR DIM 20DSBGA

Catalog: PMIC - LED Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: LP8556TMX-E04/NOPB PDF

Availability: 1203 pieces

Unit Price: ~~$0.91683~~

Current price of LP8556TMX-E04/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LP8556TMX-E04/NOPB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	DC DC Regulator
Topology:	Step-Up (Boost)
Internal Switch(s):	Yes
Number of Outputs:	6
Voltage - Supply (Min):	2.7V
Voltage - Supply (Max):	20V
Voltage - Output:	16V ~ 25V
Current - Output / Channel:	20mA
Frequency:	312kHz, 625kHz, 1250kHz
Dimming:	PWM
Applications:	Backlight
Operating Temperature:	-30°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-WFBGA, DSBGA
Supplier Device Package:	20-DSBGA (2.04x1.78)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

ADD5205ACPZ-RL

LED DRIVER, DMOS, PQCC12

HOT

PCU9656B,118

IC LED DRVR LIN DIM 100MA 48LQFP

HOT

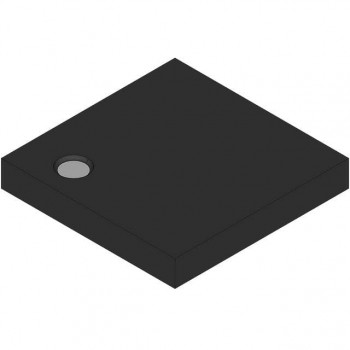

MAX1575ETE+
