LV8402GP-TE-L-H

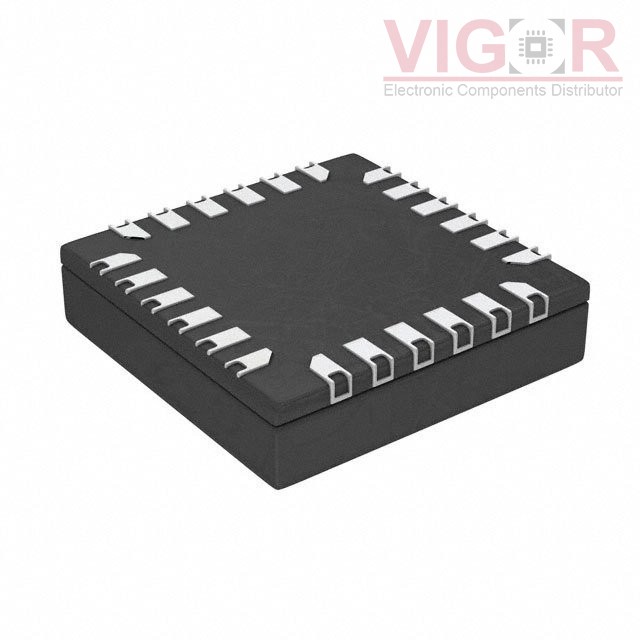

Image is for reference,
please contact us to get the real picture

Part No :

LV8402GP-TE-L-H

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC MOTOR DRIVER 2.8V-5.5V 24VCT
Catalog
PMIC - Motor Drivers, Controllers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
LV8402GP-TE-L-H PDF
Availability
32500 pieces
Unit Price
$2.56000

Current price of LV8402GP-TE-L-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Motor Type - Stepper:-
Motor Type - AC, DC:Brushed DC
Function:Driver - Fully Integrated, Control and Power Stage
Output Configuration:Half Bridge (4)
Interface:Parallel
Technology:Bi-CMOS
Step Resolution:-
Applications:General Purpose
Current - Output:1.4A
Voltage - Supply:2.8V ~ 5.5V
Voltage - Load:1.5V ~ 15V
Operating Temperature:-30°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:24-WFQFN
Supplier Device Package:24-VCT (3.5x3.5)
