TB9102FNG,EL

TB9102FNG,EL

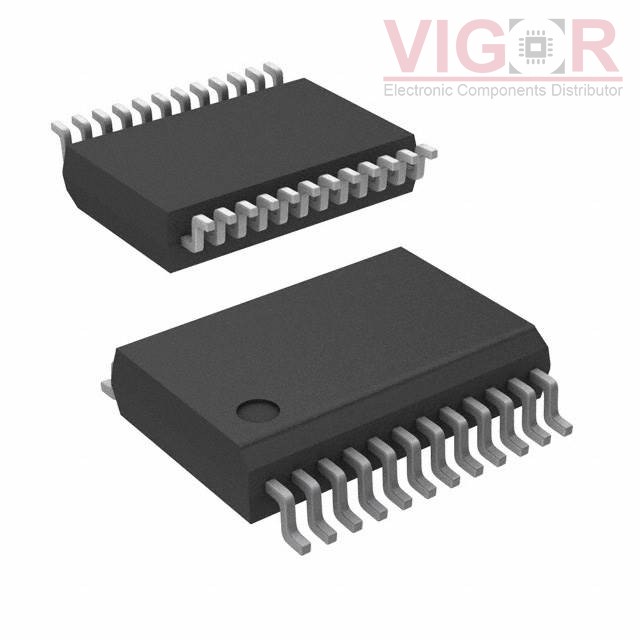

Image is for reference,
please contact us to get the real picture

Part No :

TB9102FNG,EL

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
3CHANNEL H-BRIDGE 6CH HALF-BRIDG
Catalog
PMIC - Motor Drivers, Controllers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
TB9102FNG,EL PDF
Availability
2000 pieces
Unit Price
$7.32000

Current price of TB9102FNG,EL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TB9102FNG,EL Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Motor Type - Stepper:-
Motor Type - AC, DC:Brushed DC
Function:Driver - Fully Integrated, Control and Power Stage
Output Configuration:Half Bridge (6)
Interface:SPI
Technology:Bi-CMOS
Step Resolution:-
Applications:Automotive
Current - Output:1.5A
Voltage - Supply:4.5V ~ 5.5V
Voltage - Load:7V ~ 18V
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:24-LSSOP (0.220", 5.60mm Width)
Supplier Device Package:24-SSOP
