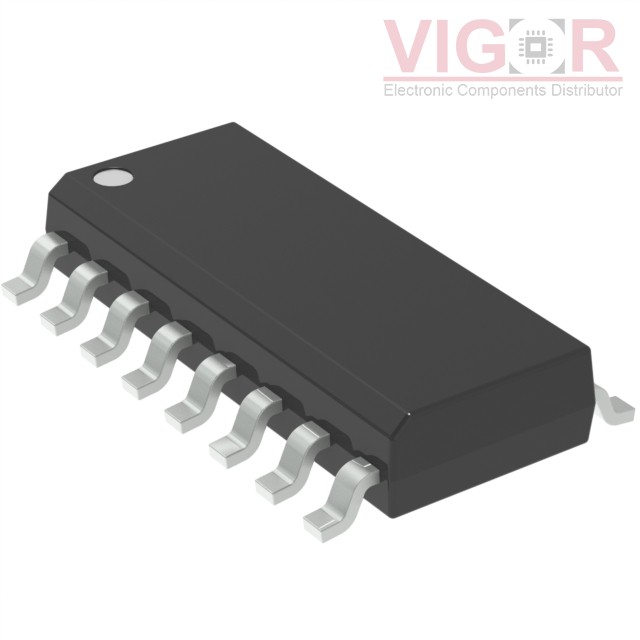

NCV70501DW002G

NCV70501DW002G

Image is for reference,
please contact us to get the real picture

Part No :

NCV70501DW002G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC MTR DRVR BIPOLAR 6-29V 16SOIC
Catalog
PMIC - Motor Drivers, Controllers
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
NCV70501DW002G PDF
Availability
197 pieces
Unit Price
$2.32229

Current price of NCV70501DW002G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NCV70501DW002G Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tube
Part Status:Last Time Buy
Motor Type - Stepper:Bipolar
Motor Type - AC, DC:-
Function:Driver - Fully Integrated, Control and Power Stage
Output Configuration:Half Bridge (4)
Interface:SPI
Technology:Power MOSFET
Step Resolution:1, 1/2, 1/4, 1/8, 1/16
Applications:General Purpose
Current - Output:-
Voltage - Supply:6V ~ 29V
Voltage - Load:6V ~ 29V
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:16-SOIC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TLE4209GXUMA1

TLE4209GXUMA1

BRUSH DC MOTOR CONTROLLER, 0.9A
HOT LB11685AV-TLM-H

LB11685AV-TLM-H

3-PHASE SENSOR LESS MOTOR DRIVER

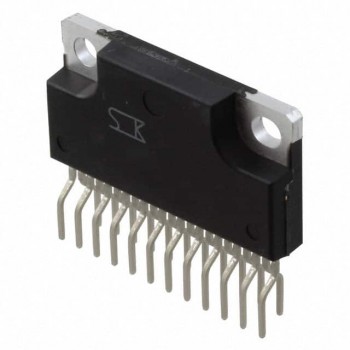

HOT SLA7082MPR
