VND5004ATR-E

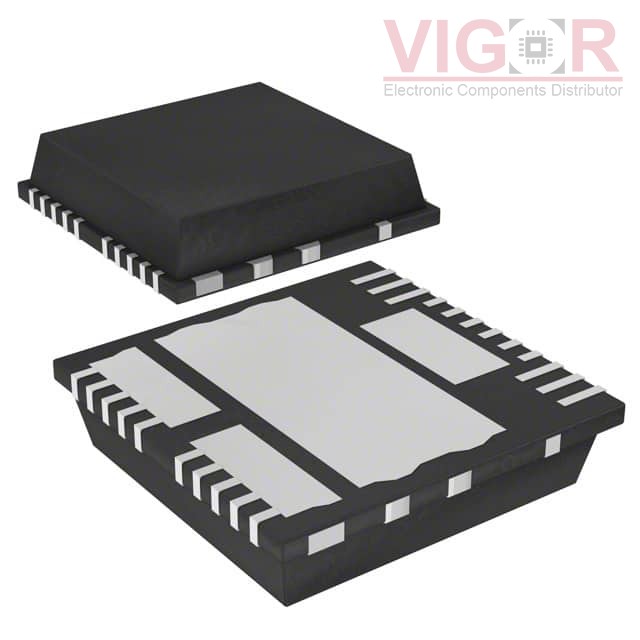

Image is for reference,
please contact us to get the real picture

Part No :: VND5004ATR-E

Manufacturer: STMicroelectronics

Description: IC PWR DRIVER N-CHAN 1:1 24PQFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: VND5004ATR-E PDF

Availability: 1121 pieces

Unit Price: ~~$5.14500~~

Current price of VND5004ATR-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VND5004ATR-E Specifications

Type	Description
Series:	VIPower™
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	2
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	4.5V ~ 27V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	70A
Rds On (Typ):	4mOhm (Max)
Input Type:	Non-Inverting
Features:	Auto Restart
Fault Protection:	Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	24-PQFN (12x12)
Package / Case:	24-PowerDFN

Please confirm the specifications of the products when ordering.
