AP22615AWU-7

AP22615AWU-7

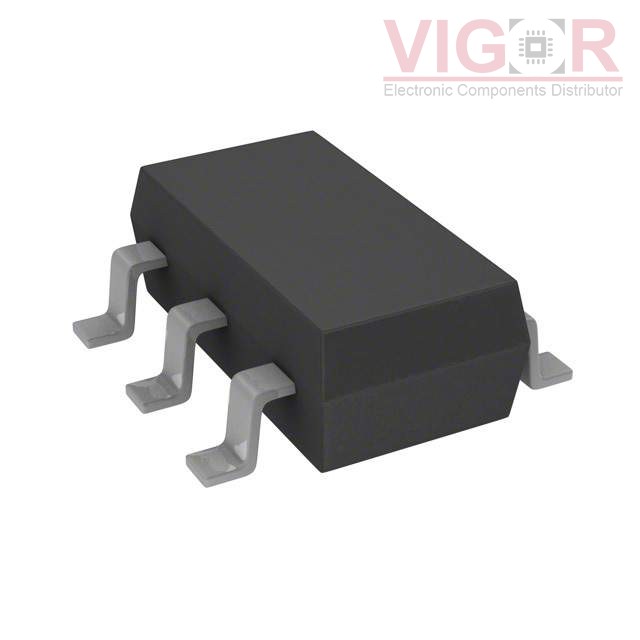

Image is for reference,
please contact us to get the real picture

Part No :

AP22615AWU-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC PWR SWTCH N/P-CHAN 1:1 TSOT26
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
AP22615AWU-7 PDF
Availability
7825 pieces
Unit Price
$0.91000

Current price of AP22615AWU-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AP22615AWU-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Type:USB Switch
Number of Outputs:1
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:N/P-Channel
Interface:On/Off
Voltage - Load:3V ~ 5.5V
Voltage - Supply (Vcc/Vdd):3V ~ 5.5V
Current - Output (Max):3A
Rds On (Typ):40mOhm
Input Type:Non-Inverting
Features:Load Discharge, Status Flag
Fault Protection:Over Current, Over Temperature, Over Voltage, Short Circuit
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:TSOT-26
Package / Case:SOT-23-6 Thin, TSOT-23-6
